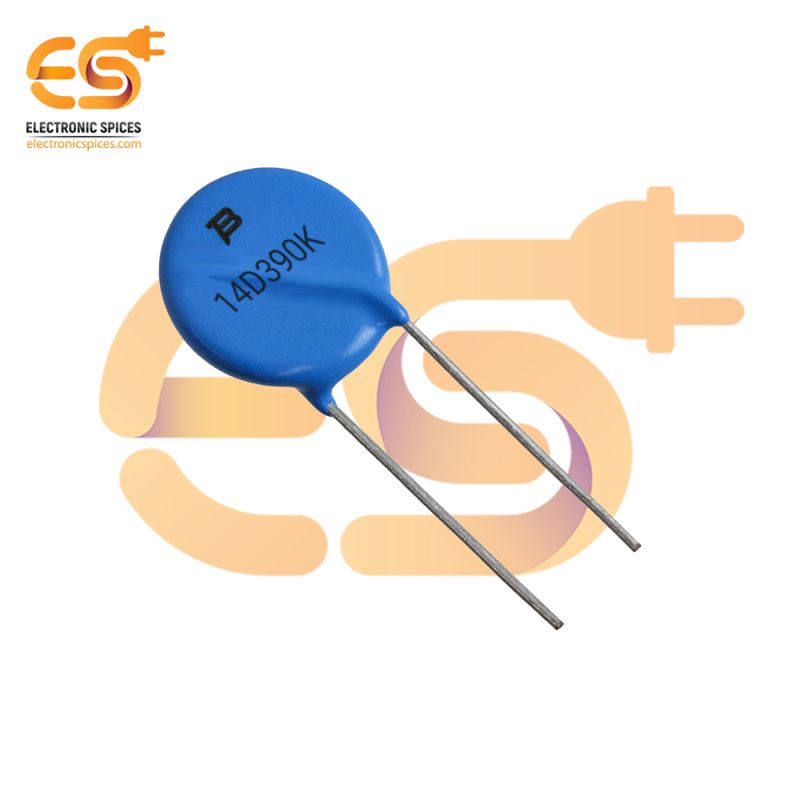

Metal Oxide Through-Hole Varistor (MOV-14D390K)
Specification:-
- Voltage Rating AC: 250V
- Voltage Rating DC: 320V
- Max Clamp Voltage: 650V
- Varistor Case: 14mm Disc
- Number of pole: 2
- Mounting type : PCB
SKU: JB8702A
Metal Oxide Through-Hole Varistor (MOV-14D390K)
The MOV-14D390K Metal Oxide Varistor is a dependable component designed for the protection of electronic circuits from voltage surges and transient spikes. Featuring a disk diameter of 14mm (denoted by "14D"), this varistor offers a balance between energy absorption capacity and physical size, making it versatile for various applications. The "390" in its designation indicates a nominal clamping voltage of 390V, suitable for safeguarding circuits operating near this voltage range. The "K" refers to a tolerance of ±10%, providing a reliable performance range for different use cases. Constructed with metal oxide semiconductor technology, the MOV-14D390K effectively shifts from a high-impedance state to a low-impedance state when exposed to sudden voltage increases, thereby diverting excessive current away from sensitive components. This fast-acting protection ensures that transient energy is safely managed, preventing potential damage to the circuit.
Features:-
- Low Power Consumption
- Compact and Durable
- Wide Application Range
- Fast Response Time
