Specification:-
- Package/Case: TSSOP14 (0.173", 4.40mm)
- Mounting Style: SMD/SMT
- Number of Output Lines: 4 Output
- Low-Level Output Current: 5.2 mA
- High-Level Output Current: - 5.2 mA
- Propagation Delay Time: 13 ns
- Supply Voltage - Min: 2 V
- Supply Voltage - Max: 6 V
SKU: BO8541A

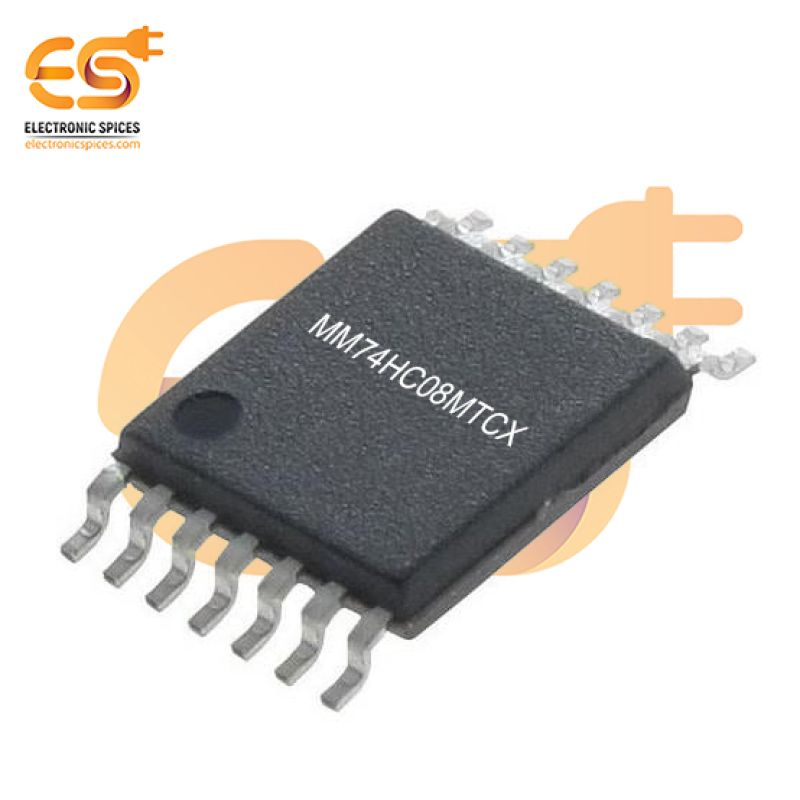

MM74HC08MTCX AND Gate Logic IC 4 Channel 14-TSSOP
The MM74HC08MTCX is a 4-channel AND gate logic IC designed for high-speed and low-power digital applications. It consists of four independent 2-input AND gates, each capable of performing logical conjunction operations. The output of each gate is high only when both of its inputs are high, making this IC ideal for precise logical control in digital circuits. Packaged in a compact 14-pin TSSOP (Thin Shrink Small Outline Package), the MM74HC08MTCX is suitable for space-constrained designs, offering efficient utilization of PCB real estate. It operates on CMOS technology, ensuring high-speed performance with minimal power consumption. The IC supports a wide operating voltage range from 2V to 6V, making it compatible with various logic levels in modern electronic systems. The device delivers low propagation delays, ensuring reliable performance in time-sensitive applications. Additionally, it exhibits excellent noise immunity and is compatible with TTL input levels, facilitating its integration into mixed-signal environments.
Features:-
- 4-Input AND Gate
- Low Power Consumption
- High-Speed Operation
- Compact 14-TSSOP Package
