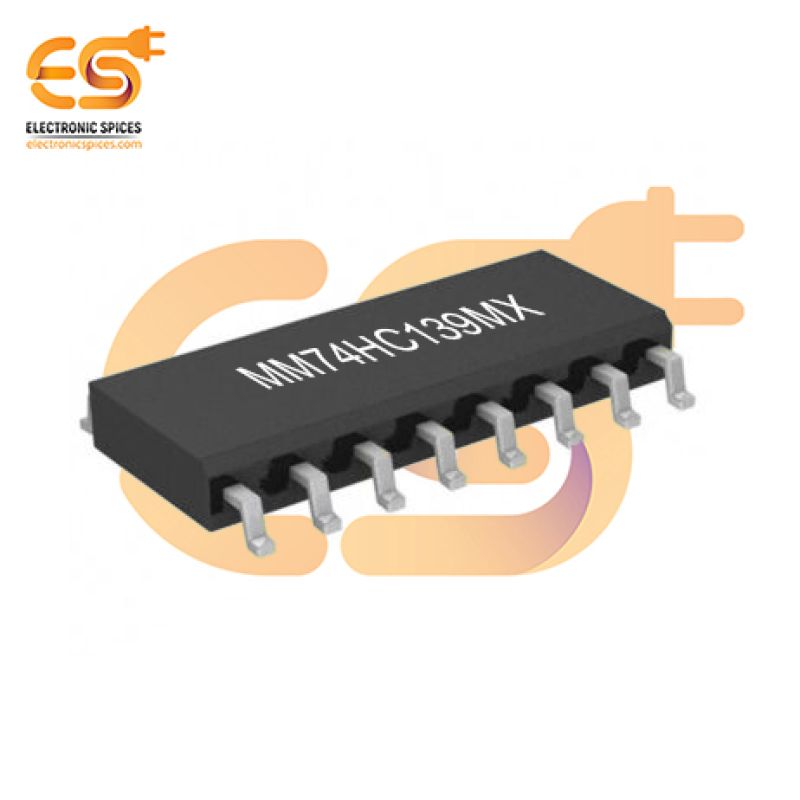

MM74HC139MX Logic IC Decoder/Demultiplexer 1 x 2:4 16-SOIC

MM74HC139MX Logic IC Decoder/Demultiplexer 1 x 2:4 16-SOIC

The MM74HC139MX is a high-speed CMOS Logic IC designed to function as a dual 2-to-4 line decoder/demultiplexer. Each of its two independent decoding circuits accepts two binary select inputs and an enable input to provide four mutually exclusive active-low outputs. This functionality allows the MM74HC139MX to efficiently translate binary input signals into one of four unique output lines, making it ideal for digital systems requiring data routing, memory addressing, or signal demultiplexing. Fabricated using advanced CMOS technology, the MM74HC139MX offers fast switching speeds comparable to standard TTL devices while maintaining low power consumption. It is fully compatible with TTL logic levels, enabling seamless integration into mixed-logic environments. The IC operates over a wide voltage range of 2V to 6V, making it versatile for a variety of applications. The MM74HC139MX is packaged in a compact 16-SOIC, suitable for space-constrained circuit designs. Its active-low output configuration simplifies cascading multiple devices for applications requiring expanded decoding capabilities. Built for reliable performance, the IC supports operation across a wide temperature range, ensuring durability in industrial, automotive, and consumer electronics. With its robust design and high performance, the MM74HC139MX is a dependable choice for efficient logic decoding and demultiplexing.

Feature:-

• Active Low Outputs
• High-Speed Operation
• Low Power Consumption
• Reliable Performance
• Wide Operating Voltage Range
