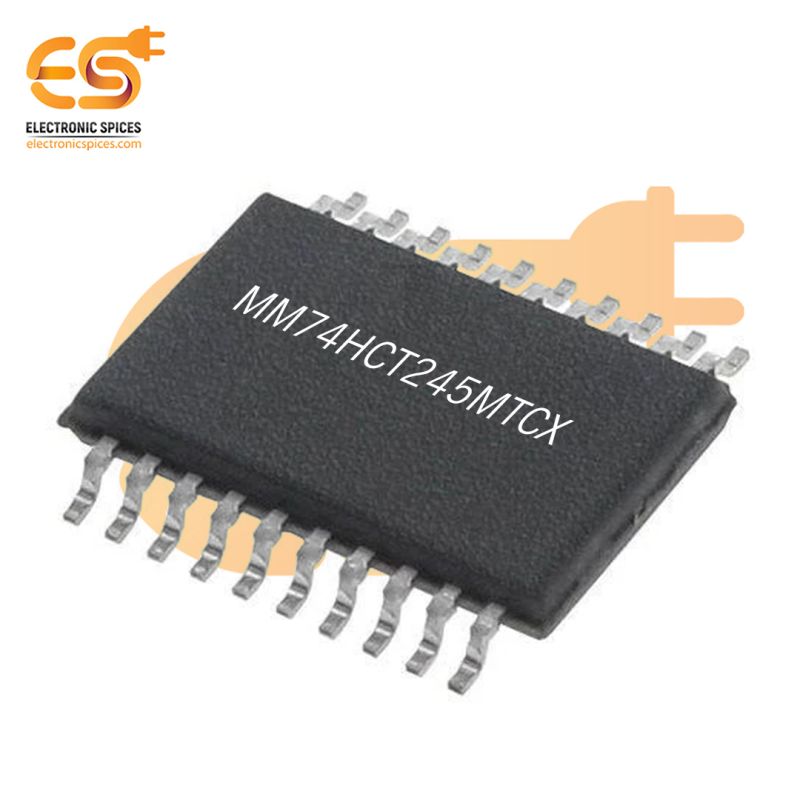

MM74HCT245MTCX Transceiver, Non-Inverting Logic IC 1-Element 8 Bit per Element 3-State Output 20-TSSOP

MM74HCT245MTCX Transceiver, Non-Inverting  Logic IC 1-Element 8 Bit per Element 3-State Output 20-TSSOP

The MM74HCT245MTCX is a non-inverting 8-bit bus transceiver designed for high-speed, bidirectional data communication in digital systems. This device is packaged in a compact 20-TSSOP form factor, making it ideal for applications requiring efficient use of PCB space. It features a single 8-bit transceiver element with 3-state outputs, providing versatile interfacing and data flow control between two buses. Equipped with separate control inputs for direction (DIR) and output enable (OE), the MM74HCT245MTCX allows seamless data transfer and isolation, ensuring compatibility with different logic families. The device's 3-state outputs are critical for bus-oriented systems, as they allow multiple devices to share a single data bus without interference. Constructed with advanced CMOS technology, this transceiver offers low power consumption and high noise immunity, making it suitable for battery-powered and low-power applications. It is compatible with TTL input levels, ensuring reliable operation in mixed logic environments. The device's fast switching speed and robust electrical characteristics make it ideal for high-performance systems, including microcontroller-based designs, memory interfacing, and general-purpose data buffering.

Feature:-

• 8-Bit Non-Inverting Transceiver
• High-Speed Operation
• Low Power Consumption
• Compact 20-TSSOP Package
