SOT-23 BIPOLAR TRANSISTORS

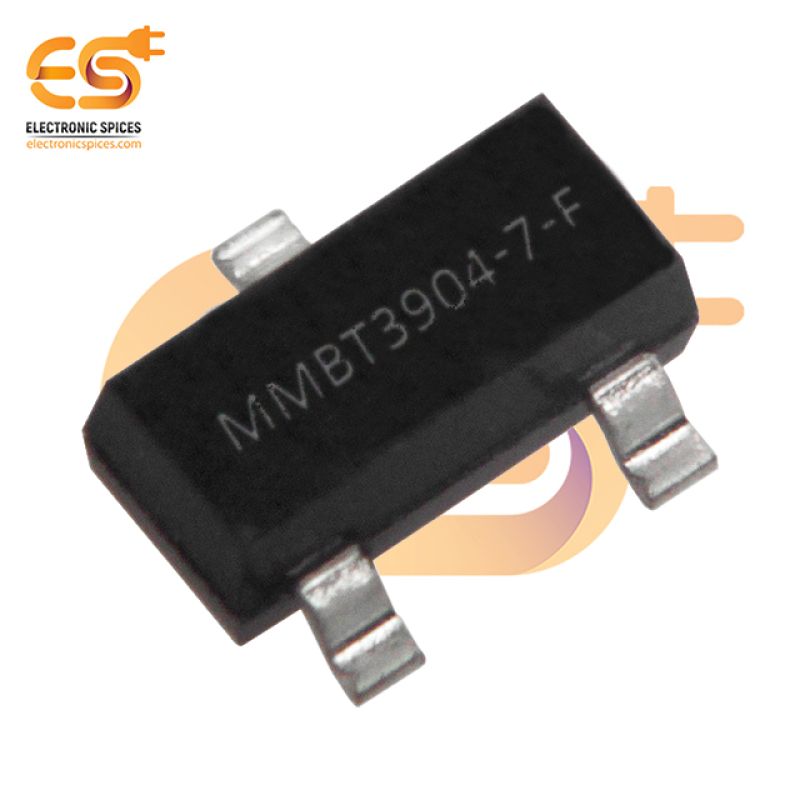

MMBT3904-7-F Bipolar 300MHz Surface Mount NPN Transistor SOT-23-3

Brand: Diodes Incorporated

Specification:-

  • Package: SOT-23-3 / TO-236-3 / SC-59
  • No. of Pins: 3Pins
  • Transistor Mounting: Surface Mount
  • Collector Emitter Voltage Max: 40V
  • Continuous Collector Current: 200mA
  • Power Dissipation: 250mW
  • Transition Frequency: 300MHz
Available in Pack Of:

SKU: KK8470A

MRP Rs. 610.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

MMBT3904-7-F Bipolar 300MHz Surface Mount NPN Transistor SOT-23-3

The MMBT3904-7-F is a versatile NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. It is housed in a compact SOT-23-3 package (also referred to as TO-236-3 or SC-59), making it ideal for surface-mount applications in space-constrained designs. With a collector-emitter voltage (Vce) rating of 40V and a collector current (Ic) capability of 200mA, this transistor is suitable for low- to medium-power circuits, delivering reliable performance in diverse electronic systems. Engineered for high-speed operations, the MMBT3904-7-F features a transition frequency (ft) of 300MHz, allowing it to perform efficiently in RF amplification and high-frequency switching tasks. Its power dissipation limit of 250mW ensures effective thermal management, even in compact layouts, while maintaining operational stability. The low saturation voltage and high current gain (hFE) contribute to efficient signal processing, making it a preferred choice for digital switching and analog amplification.

Features:-

  • Audio Preamplifiers
  • Audio Amplifier Stages
  • High-Speed Performance
  • Low Power Consumption
  • Wide Operating Voltage Range
