SOT-23 BIPOLAR TRANSISTORS

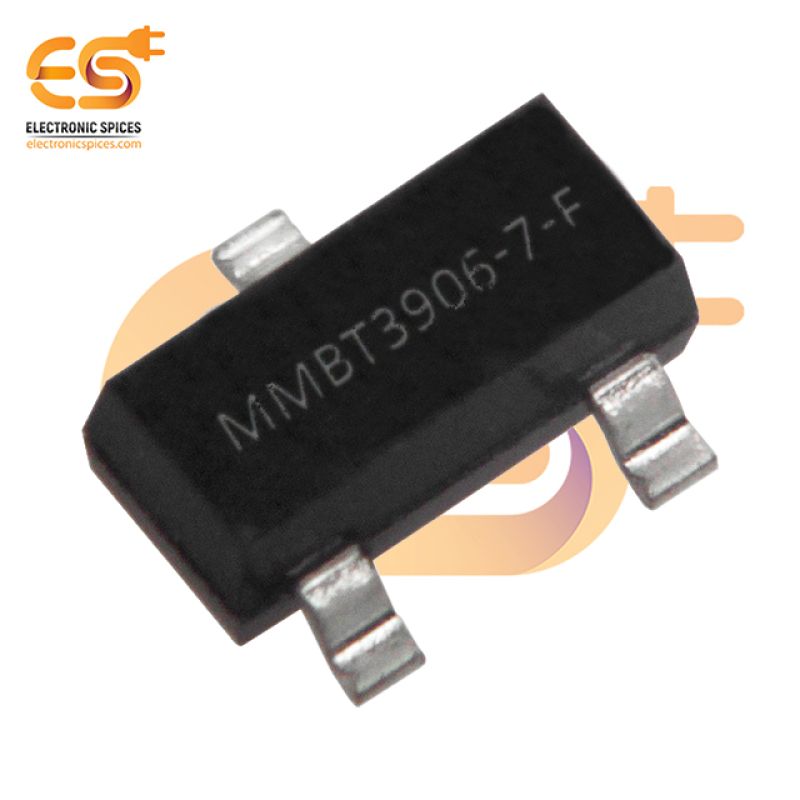

MMBT3906-7-F Bipolar 250MHz Surface Mount PNP Transistor SOT-23-3

Brand: Diodes Incorporated

Specification:-

  • Package: SOT-23-3 / TO-236-3 / SC-59
  • No. of Pins: 3Pins
  • Transistor Mounting: Surface Mount
  • Continuous Collector Current: 200mA
  • Power Dissipation: 250mW
  • Transition Frequency: 300MHz
Available in Pack Of:

SKU: AV8470A

MRP Rs. 600.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

MMBT3906-7-F Bipolar 250MHz Surface Mount PNP Transistor SOT-23-3

The MMBT3906-7-F is a reliable and versatile PNP bipolar junction transistor (BJT) designed for general-purpose amplification and switching in compact electronic devices. Encased in a space-saving SOT-23-3 surface-mount package, this transistor is ideal for use in applications requiring efficient performance and a minimal footprint. With a transition frequency (ft) of 250MHz, the MMBT3906-7-F is capable of operating at high frequencies, making it suitable for RF circuits, signal processing, and fast-switching applications. It supports a maximum collector-emitter voltage (Vce) of -40V and can handle a collector current (Ic) of up to -200mA, which is sufficient for low- to medium-power applications. The device exhibits low saturation voltage, ensuring efficient operation in amplification and switching tasks. Common applications include audio pre-amplifiers, signal boosters, low-power inverters, and digital switching circuits. It is also widely used in telecommunications and instrumentation devices where high-frequency operation is required. The SOT-23-3 package allows for surface-mount integration, making it a preferred choice in modern PCB designs where space is at a premium.

Features:-

  • Audio Preamplifiers
  • Audio Amplifier Stages
  • High-Speed Performance
  • Low Power Consumption
  • Wide Operating Voltage Range
