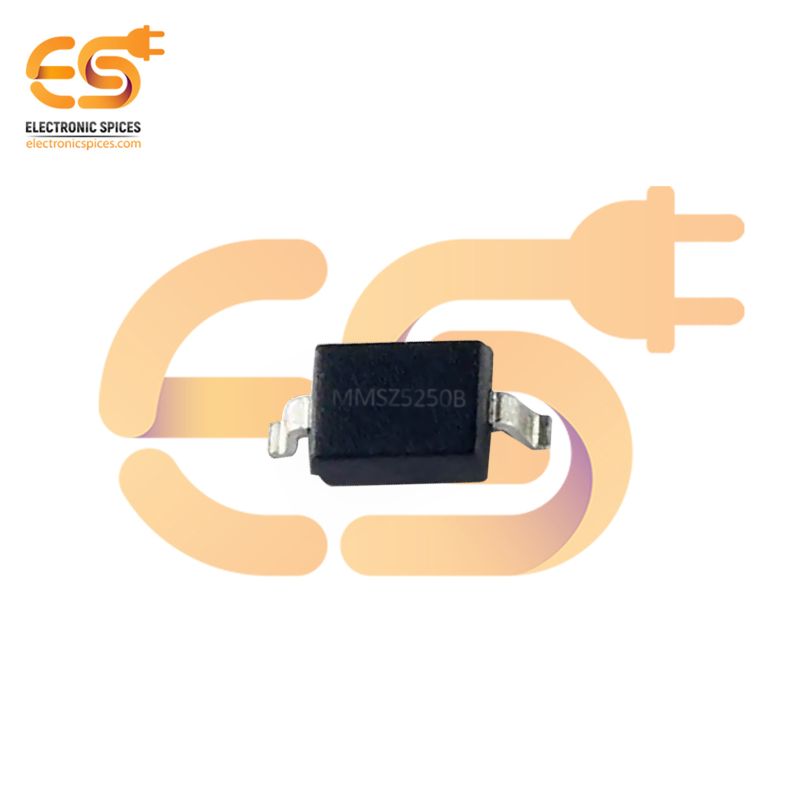

MMSZ5250B Zener Diode 20V 500 mW ±5% Surface Mount SOD-123
Brand: Diodes IncorporatedSpecification:-
- Package: SOD-323
- Pin Count: 2
- Working Test Current: 6.2 mA
- Power Dissipation-Max: 0.5 W
- Reference Voltage-Nom: 20 V
- Operating Temperature-Max: 150 °C
SKU: HC8470A
MMSZ5250B Zener Diode 20V 500 mW ±5% Surface Mount SOD-123
The MMSZ5250B is a Zener diode with a 20V breakdown voltage and a 500mW power dissipation rating. It is designed in a surface-mount SOD-123 package, making it an ideal choice for applications where space-saving and efficient thermal management are essential. This diode is commonly used for voltage regulation, clamping, and protection in various electronic circuits. With an 18V Zener voltage, the MMSZ5250B ensures stable and reliable operation when the reverse voltage exceeds its breakdown voltage, providing voltage regulation and helping to protect sensitive components from voltage spikes and surges. It is especially useful in protecting circuits from overvoltage conditions, where it can safely dissipate excess energy. The ±5% tolerance means the Zener diode will regulate within 20V ±5%, offering a reliable level of precision. This tolerance ensures that the device maintains a stable voltage over a range of operating conditions, which is important in power supply systems, signal processing circuits, and electronic devices requiring tight voltage regulation.
Features:-
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
