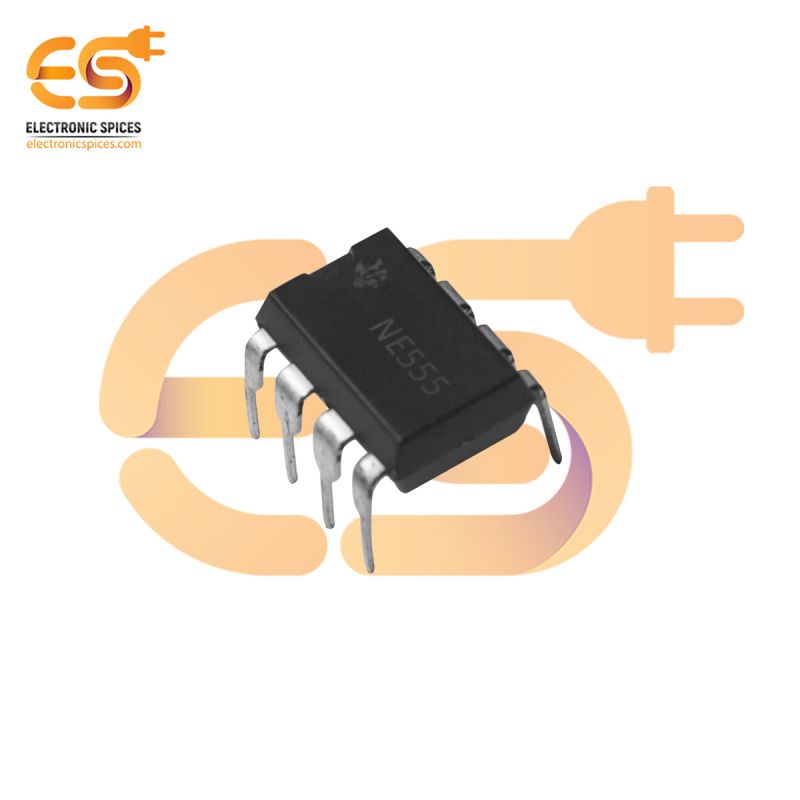

NE555 DIP-8/SOP-8 Timer IC Pack of 5
Specification:-
- Supply Voltage – Max: 16 V
- Supply Voltage – Min: 4.5 V
- Minimum Operating Temperature: 0°C
- Maximum Operating Temperature: + 70°C
- Mounting Style: Through Hole
SKU: 7698CFS
NE555 DIP-8/SOP-8 Timer IC Pack of 5
These devices are precision timing circuits capable of producing correct time delays or oscillations. In the time-delay or monostable mode of operation, the timed interval is managed through a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle can be controlled independently with two exterior resistors and a single external capacitor. The threshold and trigger ranges are commonly two-thirds and one-third, respectively, of VCC. These levels can be altered through the voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset, and the output is low.
Features:
- Timing from microseconds to hours
- A stable or monostable operation
- Adjustable duty cycle
- Applications: Consumer electronics, embedded design and development, military, aerospace, defense, and clock and timing
- +
-
-
