PMBT2222A 600mA NPN Transistors 40V (SOT-23 Package) Pack of 10

PMBT2222A 600mA NPN Transistors 40V (SOT-23 Package) Pack of 10

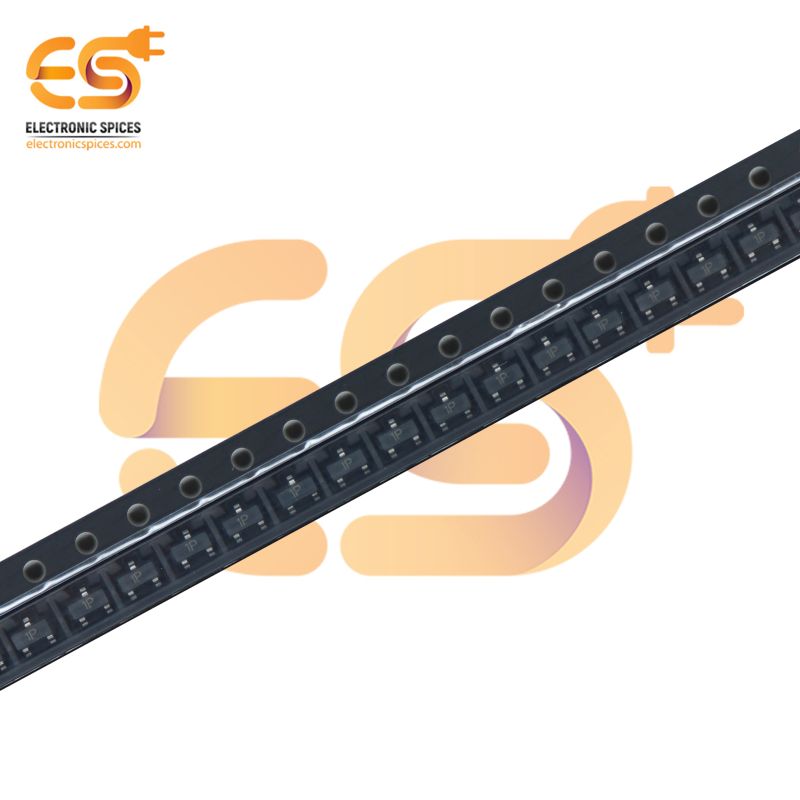

A common NPN bipolar junction transistor (BJT) in a variety of electronic circuits and applications is the PMBT2222A. This transistor provides excellent performance and dependability in a small form factor and is packaged in a SOT-23 surface-mount package. The three semiconductor layers that comprise the PMBT2222A, an NPN-type bipolar transistor, are the emitter, base, and collector. It controls the current flow between the emitter and collector terminals based on the current applied to the base terminal. In a variety of electronic circuits, the PMBT2222A transistor can manage moderate to high current loads thanks to its maximum collector current (IC) rating of 600 mA. Because of this, it can be used in applications where moderate power signals need to be switched or amplified. When the PMBT2222A transistor is fully saturated, there is very little voltage drop across it due to its low collector-emitter saturation voltage (VCE(sat)). This feature is helpful in applications where high efficiency and low power dissipation are crucial. The SOT-23 surface-mount package, which is popular due to its small size, handleability, and compatibility with automated assembly procedures, houses the PMBT2222A transistor. The transistor can be used in high-density circuit designs and is appropriate for applications where space is limited because of its small package.

Applications:-

• Switching circuits
• Low-power switching circuits
• Amplifiers and signal conditioning circuits
• Voltage regulators and power management circuits
• Oscillators and signal generators
• Motor drive and control circuits
• LED drivers and lighting control circuits

Features:-

• High current handling capability
• Low voltage drop
• Wide temperature range
• Compact SOT-23 package
• Versatility in circuit design
• Reliable performance
