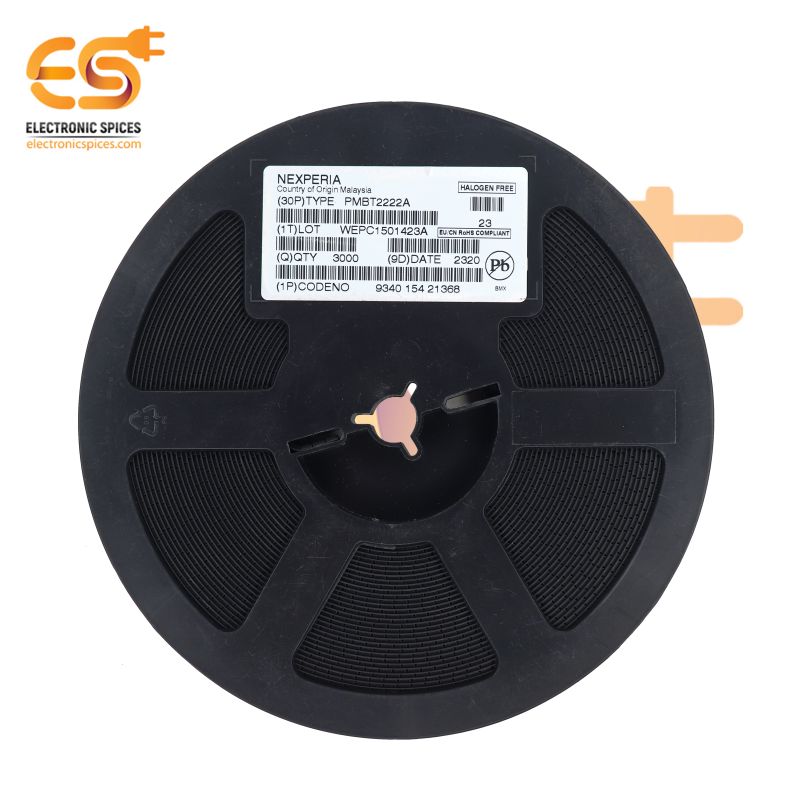

PMBT2222A 600mA NPN Transistors 40V (SOT-23 Package) Pack of 3000

PMBT2222A 600mA NPN Transistors 40V (SOT-23 Package) Pack of 3000

The PMBT2222A is a versatile NPN bipolar junction transistor (BJT) often utilized in a multitude of electronic circuits and applications. Housed in the miniature SOT-23 surface-mount package, this transistor delivers superior performance and dependability in a space-saving design. Comprising three semiconductor layers, the emitter, base, and collector, the PMBT2222A represents an NPN-type bipolar transistor. Depending on the current flowing through the base terminal, it controls the current flow between the emitter and collector terminals. Capable of handling a maximum collector current (IC) of 600 mA, the PMBT2222A transistor can manage moderate to high current loads in numerous electronic circuits. As a consequence, it is well-suited for applications that require switching or boosting moderate power signals. The PMBT2222A transistor boasts a low collector-emitter saturation voltage (VCE(sat)), resulting in minimal voltage drop across the transistor when fully saturated. This feature is advantageous in applications that prioritize low power dissipation and high efficiency. The PMBT2222A transistor is shielded in the SOT-23 surface-mount package, renowned for its small footprint, user-friendliness, and compatibility with automated assembly processes. This diminutive casing makes the transistor suitable for space-restricted applications and permits intricate high-density circuit designs.

Applications:-

• Switching circuits
• Low-power switching circuits
• Amplifiers and signal conditioning circuits
• Voltage regulators and power management circuits
• Oscillators and signal generators
• Motor drive and control circuits
• LED drivers and lighting control circuits

Features:-

• High current handling capability
• Low voltage drop
• Wide temperature range
• Compact SOT-23 package
• Versatility in circuit design
• Reliable performance
