SOT-23 BIPOLAR TRANSISTORS

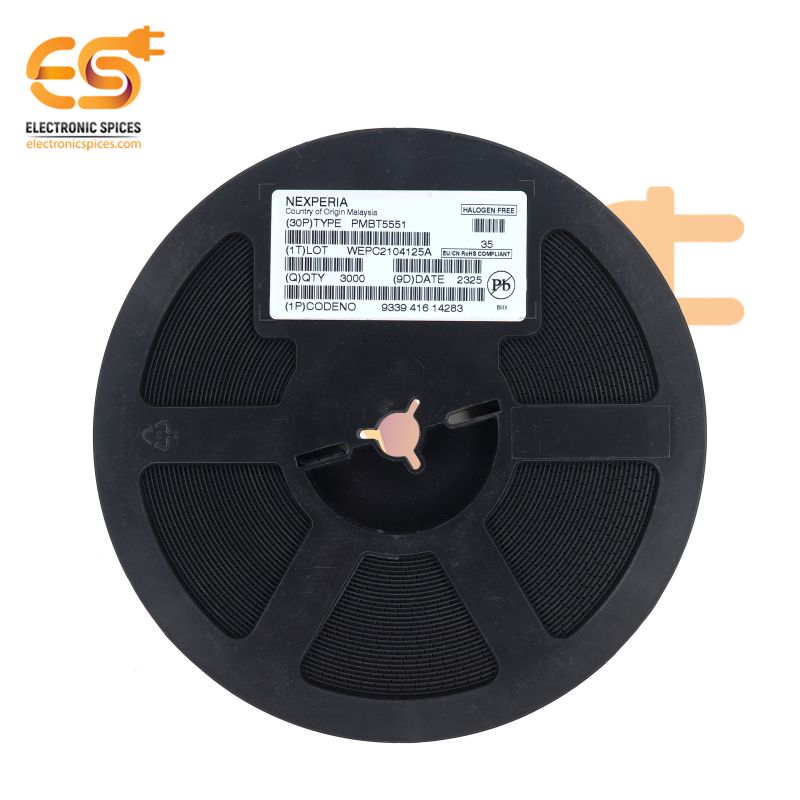

PMBT5551 300mA NPN Transistors 160V (SOT-23 Package) Pack of 3000

Specification:-

  • Type of transistor: NPN
  • Collector-Emitter Voltage, max:  160 V
  • Collector-Base Voltage, max: 180 V
  • Transition Frequency, min: 100 MHz
  • Maximum Collector Current: 0.3 A
  • Maximum Collector Power Dissipation (Pc): 0.25 W
  • Operating and Storage Junction Temperature Range: -55 to +150 °C
  • Package: SOT-23
Available in Pack Of:

SKU: OI8541A1

MRP Rs. 4318.56
Rs. 2999.00 (Incl. Tax)
Rs. 2541.53 (+18% GST extra)
Rs. 2541.53 / pack of 3000 = Rs. 0.85 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

PMBT5551 300mA NPN Transistors 160V (SOT-23 Package) Pack of 3000

An NPN bipolar junction transistor (BJT) that is frequently utilized in circuits for low-power switching and amplification is the PMBT5551. Compact SOT-23 surface-mount packaging, which offers space-saving advantages and compatibility with contemporary electronic circuit board designs, houses the PMBT5551 transistor. The small size and ease of soldering onto printed circuit boards (PCBs) make this package type popular. As an NPN transistor, the PMBT5551 is made up of three semiconductor layers: two N-type layers are positioned between a P-type layer. The bulk of charge carriers in NPN transistors are electrons, and when a positive voltage is applied to the base in relation to the emitter, current moves from the collector to the emitter. When moderate current levels are needed in low-power applications, the PMBT5551's maximum collector current (Ic) rating of 300 mA makes it appropriate. Although it might not be as resistant to high voltages as some other transistors, its lower voltage rating makes it ideal for low-voltage applications where accuracy and effectiveness are crucial. Compact SOT-23 NPN transistors with low voltage ratings, low power dissipation, quick switching speeds, and temperature stability. Its many uses make it a well-liked option for a variety of electronic projects and gadgets that need dependable switching and amplification.

Applications:-

  • Low-power switching circuits
  • Amplifiers and signal conditioning circuits
  • Voltage regulators and power management circuits
  • Oscillators and signal generators
  • Motor drive and control circuits
  • LED drivers and lighting control circuits

Features:-

  • High current handling capability
  • Low voltage drop
  • Wide temperature range
  • Compact SOT-23 package
  • Versatility in circuit design
  • Reliable performance
