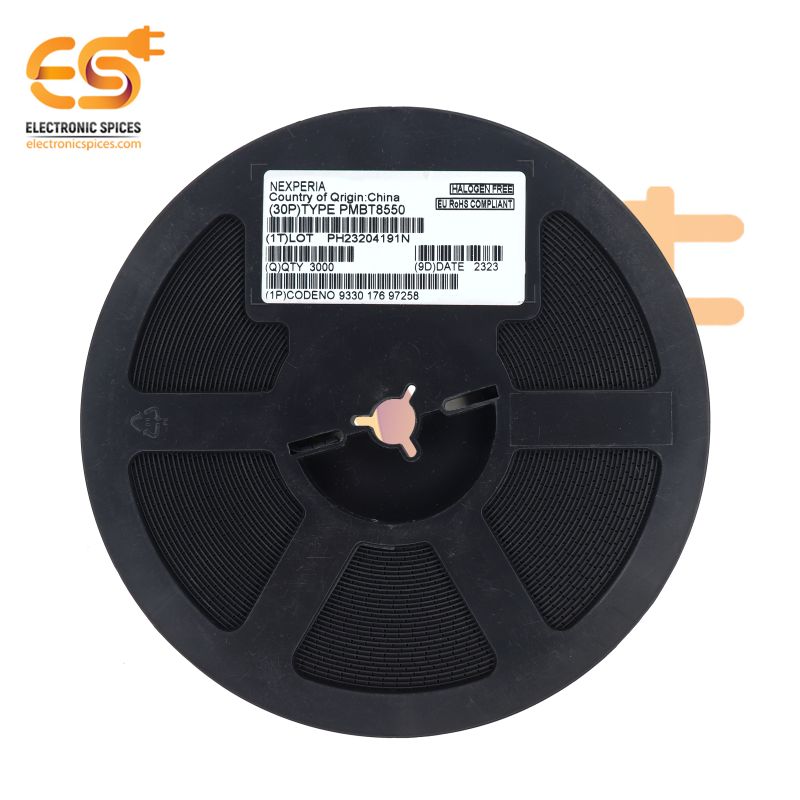

PMBT8550 600mA PNP Transistors 25V (SOT-23 Package) Pack of 3000
Specification:-
- Type of transistor: PNP
- Collector-Emitter Voltage, max: 25 V
- Collector-Base Voltage, max: 40 V
- Power Dissipation: 350 mW
- Transition Frequency, min: 100 MHz
- Operating and Storage Junction Temperature Range: -55 to +150 °C
- Package: SOT-23
SKU: LG8541A1
PMBT8550 600mA PNP Transistors 25V (SOT-23 Package) Pack of 3000
The PMBT8550 is a PNP bipolar transistor (BJT) commonly used in low power switching and amplifier circuits. The PMBT8550 transistor is housed in a compact surface-mount SOT-23 package that provides space-saving advantages and compatibility with modern electronic circuit board designs. This type of package is widely used for on printed circuit boards (PCBs) due to its small footprint and ease of soldering. The PMBT8550 is a PNP transistor, meaning it consists of three layers of semiconductor material: an N-type layer sandwiched between two P-type layers. In PNP transistors, most of the majority of charge carriers are holes, and current flows from the emitter to the collector when a positive voltage is applied to the base relative to the emitter. The PMBT8550's maximum collector current (Ic) of 600 mA makes it suitable for low-power applications that require moderate current levels. Its low power dissipation makes it perfect for use in battery-powered devices, portable electronics, and other energy-efficient applications. Thanks to its high collector-emitter voltage (Vceo) of 25V, the PMBT8550 transistor can tolerate relatively high voltage levels without failure. Its voltage rating makes it suitable for circuits that need to operate at higher voltages, such as power supplies, voltage regulators and automotive electronics.
Applications:-
- Low-power switching circuits
- Switching circuits
- Amplifiers and signal conditioning circuits
- Voltage regulators and power management circuits
- Oscillators and signal generators
- Motor drive and control circuits
- LED drivers and lighting control circuits
Features:-
- High current handling capability
- Low voltage drop
- Wide temperature range
- Compact SOT-23 package
- Versatility in circuit design
- Reliable performance
