PTS-09 4 pins ON/ON/ON/OFF 1A 30V self lock tactile switch pack of 20pcs
- Mode of operation : ON/ON/ON/OFF
- Power rating : 1A 30V
- Number of pins : 4
- Dimension of the switch : 12mm x 12mm x 9mm
- Insulation Resistance : 100M ohm (Ω)
- Operating Force : 2.55±0.69 N
- Durable construction
- Long lasting
SKU: 13771GT
PTS-09 4 pins ON/ON/ON/OFF 1A 30V self lock tactile switch pack of 20pcs
This is a self-lock tactile switch. This switch has a self-lock mechanism. This means, when it is pressed down it goes in ON position on terminal one and remains in that position until it is pressed again. When the switch is pressed again it goes to terminal 2 and remains in that position until it is pressed again. When the switch is pressed again it goes to terminal 3 and remains in that position until it is pressed again. And when this switch is pressed again the switch goes off. Also, this cycle goes just like that continuously. This type of switch is generally used in kitchen appliances or small light systems. The shape of the switch is square with a length of 12mm. It is built from hard plastic material. The switches are tested to 15,000 clicks continuously. It is reliable and can also withstand high temperatures.
Package includes

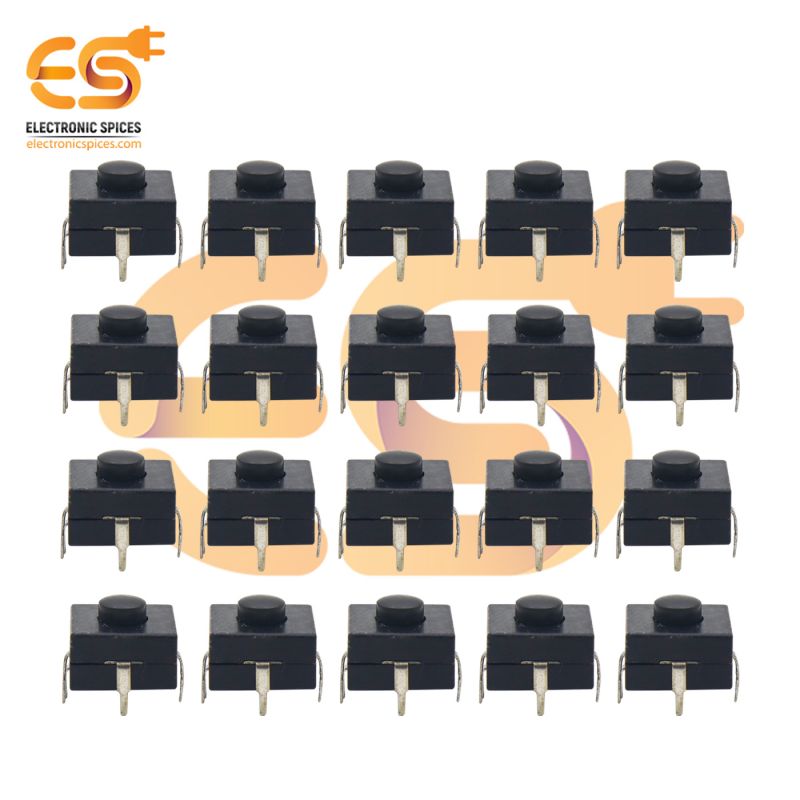

This is the pack of 20 pieces of PTS-09 4 pin ON/ON/ON/OFF 1A 30V self lock tactile switch
Features
- Increased user satisfaction
- Durable construction
- Long lasting
- Resistance to moisture and environmental pollutants
