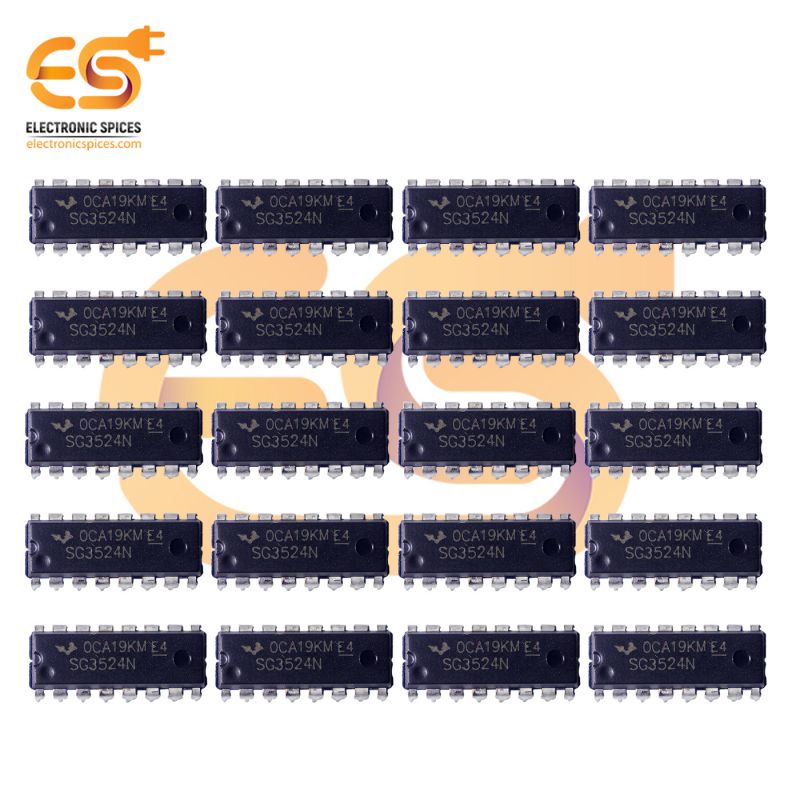

SG3524N Regulating pulse width modulator DIP 16 pins IC pack of 50pcs
Specification
- Supply voltage range : 8V to 40V
- Output voltage : 5V
- Output current : 50 mA
- Dual output
- Topology : Boost, Buck, Fly-back, Forward, Push-Pull
- Switching frequency : 722 kHz
- Fall Time : 100 ns
Available in Pack Of:
SKU: 10440FP
MRP Rs. 964.85
Rs.
839.00
(Incl. Tax)
Rs.
711.02
(+18% GST extra)
Rs. 711.02 / pack of 50 = Rs. 14.22 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
SG3524N Regulating pulse width modulator DIP 16 pins IC pack of 50pcs
This is a single monolithic chip. It consists of regulating pulse width modulator. This IC incorporates all the functions that are required in making a regulating power supply, inverter, or switching regulator. It can also be used as a control element for high power output applications. It is designed to switch the polarity of regulators. The dual alternating outputs allow either single-ended or push-pull applications.Package includes
This is the pack of 50 pieces of SG3524N Regulating pulse width modulator DIP 16 pin ICFeatures
- It is capable of controlling complete PWM power circuitry
- 8mA Typical low standby current
- Also, dual alternating outputs allow either single-ended or push-pull applications.
