Specification:-
- Maximum repetitive peak reverse voltage : 60V
- Maximum average rectified current : 5.0A
- Peak forward surge current 8.3ms single half sine- wave : 150A
- Maximum reverse current @ VRRM TA = 25°C : 0.5mA
- Package : DO-201AD
SKU: 848KUT

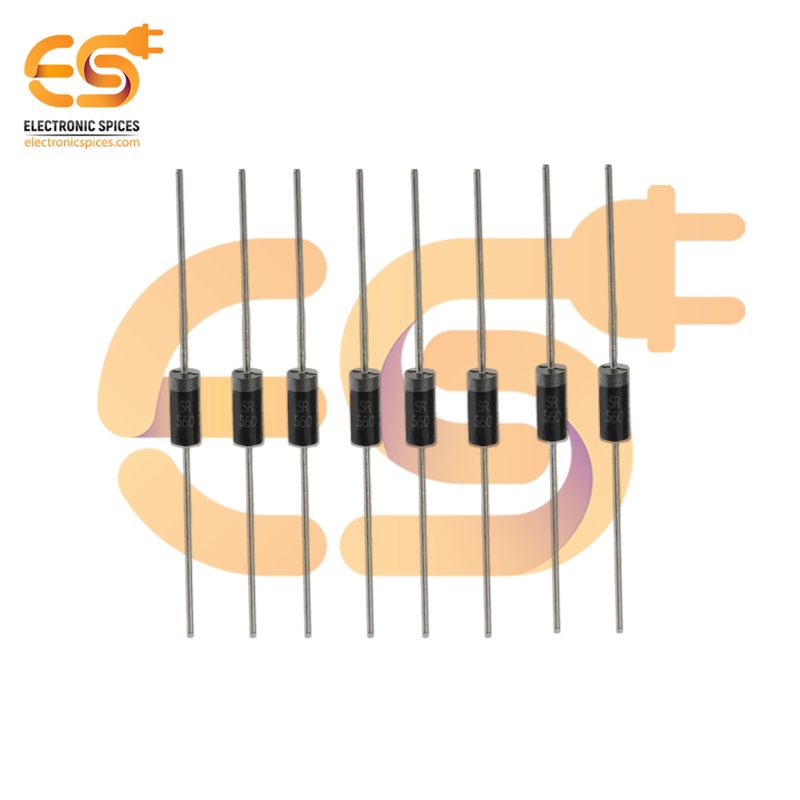

SR560/SB560 60V ,DO-201AD Schottky Barrier Rectifiers Pack of 100
The SR560 / SB560 60V DO-201AD Schottky Barrier Rectifier is a high-efficiency power diode designed for applications where low forward voltage drop, fast switching speed, and reliable current handling are required. Built using advanced Schottky barrier technology, this rectifier minimizes power loss and heat generation compared to standard PN junction diodes, making it ideal for modern power-efficient electronic circuits. With a maximum repetitive reverse voltage of 60V and high average forward current capability, the SR560/SB560 is well-suited for low-voltage, high-current rectification tasks. Housed in a robust DO-201AD axial package, the diode offers excellent mechanical strength, good heat dissipation, and easy through-hole mounting, which makes it convenient for both industrial production and DIY electronics projects. The Schottky construction ensures very fast switching performance with virtually no reverse recovery time, resulting in reduced switching losses and improved overall circuit efficiency. This makes the rectifier especially effective in switch-mode power supplies (SMPS), DC-DC converters, inverters, and freewheeling diode applications.
Feature:-
- Low forward voltage drop
- High current capability
- High reliability
- High sugar current capability
