- Type : Slide toggle switch
- Function : DP3T ( double pole triple throw)
- Power rating : 15A
- Dielectric strength : 500V DC
- Contact resistance : 100mΩ
- Metal body
- Hard plastic handle
SKU: 11059HZ
TS23E01 15A 8 pins DP3T PCB mountable slide toggle switches pack of 10pcs
This is a metal body toggle sliding switch. It has a hard plastic joystick for movement. Basically, this switch is a combination of a DPDT slide switch with a joystick. The switch works on three-way output. It contains 8 terminal pins, two pins are used as input and the remaining six are used as output. It provides three-terminal switching (on/off/on). This switch is built for long-term use. The life cycle for this switch continues for almost 10,000 rotations. It is durable, robust, and easy to install.
Package includes

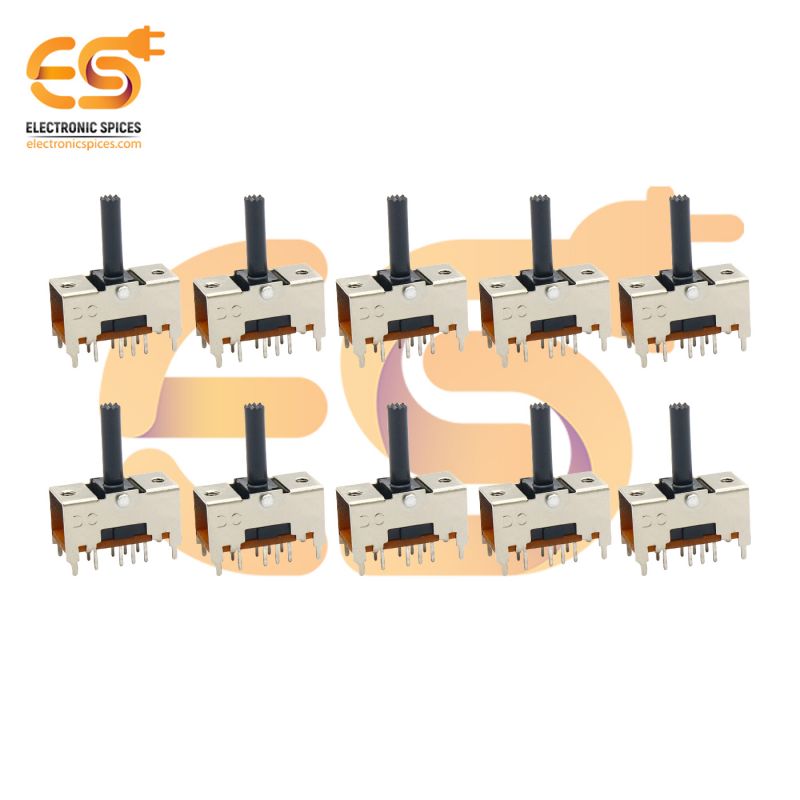

This is the pack of 10 pieces of TS23E01 15A 8 pins DP3T PCB mountable slide toggle switch
Features
- High-quality metal body
- Hard plastic joystick
- Can work in harsh conditions
- Simple on/off/on switch
Get Product Suggestions!
AI-Powered Suggestions
Frequently Asked Questions
We offer a wide range of switches including push button switches, toggle switches, momentary switches, self-lock switches, and smart WiFi switch modules. Options come in different sizes (12mm, 16mm, 19mm), colors (blue, green, yellow, white), and indicator lights for versatile applications.
Yes! Our collection includes Mini WiFi Smart Switch Modules that support app and voice control, making them perfect for smart home automation. Additionally, push button and toggle switches are widely used in DIY electronics, robotics, and educational projects.
We offer multiple options:
- SPST (Single Pole Single Throw)
- SPDT (Single Pole Double Throw)
- DPDT (Double Pole Double Throw)
- DPCO (Double Pole Change Over)
- DP3T (Double Pole Triple Throw) Available in 2–8 pin configurations, current ratings from 2A to 20A, and body types including plastic, ceramic, and metal.
Yes. Many of our switches come with built‑in LED indicators (blue, green, yellow, white) for Easy status monitoring. These are Especially useful in control panels, machinery, and DIY electronics projects where visibility matters.
We stock nickel‑plated brass push button switches (IP65 rated) and high‑current toggle switches that are suitable for industrial control panels, machinery, and automotive applications. For heavy loads, always check the voltage and current rating before installation.
Consider these factors :
- Type of operation (momentary vs self‑lock)
- Size & mounting hole (12mm, 16mm, 19mm)
- Current & voltage rating (AC 125V 3A, AC 250V 1.5A, etc.)
- Indicator requirement (LED or non‑LED)
- Application (DIY, home automation, industrial use)
Our filters and product Descriptions make it Easy to select the right switch.
. SPST (Single Pole Single Throw): Simple ON/OFF switch.
. SPDT (Single Pole Double Throw): One input, two outputs – used for selecting between two circuits.
DPDT (Double Pole Double Throw) : Controls two separate circuits simultaneously, often used in motor direction control
