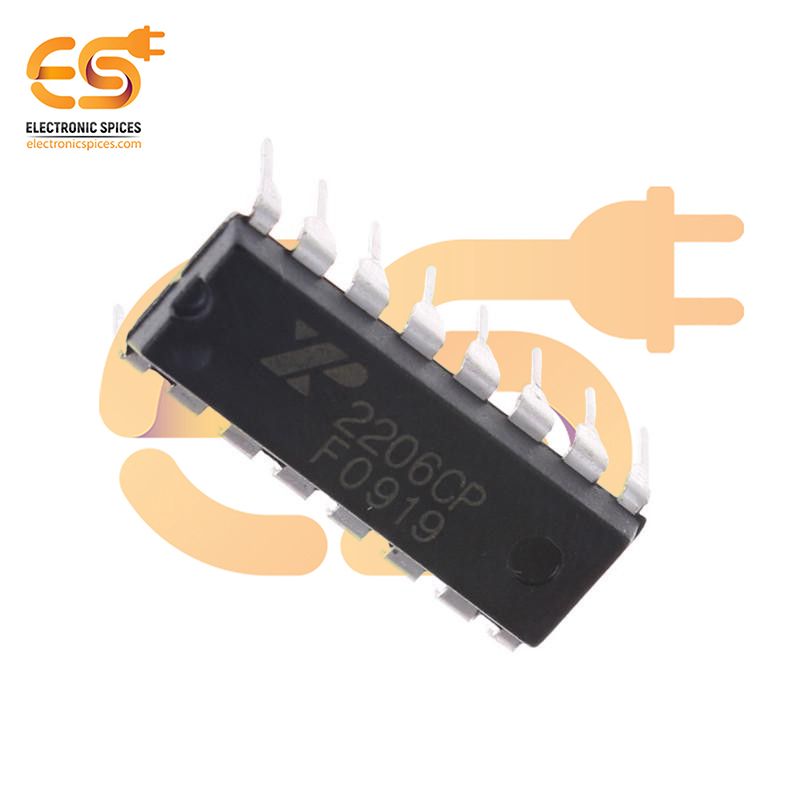

XR2206 Monolithic Function Generator IC

XR2206 Monolithic Function Generator IC

The XR2206 Monolithic Function Generator IC is a versatile, low-cost integrated circuit used for generating a wide range of waveforms such as sine, square, triangle, and sawtooth signals. This IC is ideal for applications in electronic testing, audio equipment, and signal processing systems. The XR2206 can produce frequencies from 0.01 Hz to 1 MHz, making it suitable for both low-frequency and high-frequency applications. The frequency of the output waveform is easily adjustable by using an external resistor-capacitor (RC) network, allowing for precise tuning. This function generator operates as a voltage-controlled oscillator (VCO), meaning its output frequency can be varied by applying a control voltage, offering flexibility for dynamic applications. It also boasts low harmonic distortion, especially in sine wave mode, ensuring high-quality signal generation for accurate testing. With a wide supply voltage range of 3V to 18V, the XR2206 is adaptable to various system designs, including battery-operated and energy-efficient applications. Its low power consumption and compact package make it an excellent choice for modern, space-constrained electronic devices.

Features:-

• High-Speed Operation
• Wide Operating Voltage Range
• Low Power Consumption
• Low Harmonic Distortion
