Hongfa Technology Co.
Founded in 1984, Hongfa has Grown to Become a Powerhouse in the relay industry with over 30 Subsidiaries worldwide and presence in more than 120 Countries. Our Wide Product range includes relays, electrical appliances, Automation Equipment, and precision parts. With a Commitment to Continuous innovation and high - Quality standards, Hongfa provides reliable Solutions for Various industries, including automotive industrial control, smart grid, and new energy. Join us in our mission to bring people a more comfortable and convenient life through cutting-edge technology and exceptional products
Show more >>Showing 1–12 of 57 results
.jpg)
-
![HF68F/024-1HSB Through Hole 4-Pin 24V 8A SPST Miniature Power Relay]()
HF68F/024-1HSB Through Hole 4-Pin 24V 8A SPST Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Coil Voltage: 24VDC
- Switching Current: 8A
- Max Switching Voltage: 120V DC
- Max Switching Voltage: 240V AC
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-
![HF115F/024-2HS4 24V 8A Through Hole 6-Pin DPST Miniature High Power Relay]()
HF115F/024-2HS4 24V 8A Through Hole 6-Pin DPST Miniature High Power Relay
Rs. 500.00Specification:-
- Package: DIP 6-Pin
- Mounting : PCB-THT
- Coil voltage: 24V DC
- Contact Rating: 8A
- Rated voltage(V) : 250VAC
- Contact arrangement : 2 Form A
- Contact Configuration: DPST (Double Pole Single Throw)
-
![HFD41A/12VDC-NS(136) Through Hole 5-Pin12V 2A SPDT Signal Relay]()
HFD41A/12VDC-NS(136) Through Hole 5-Pin12V 2A SPDT Signal Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Rated coil voltage: 12V DC
- Contact current max: 2A
- Contact Rating: 1A 125VAC/30VDC
- Max. switching Voltage: 240VAC / 30VDC
- Max. Switching Power: 600VA / 30W
- Contacts configuration: SPDT
-
![HF33F/005-Z3 Through Hole 5-Pin 5V 10A SPST Miniature Power Relay]()
HF33F/005-Z3 Through Hole 5-Pin 5V 10A SPST Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Coil Voltage: 5V DC
- Switching Current: 10A
- Contact Voltage : 30V DC ~ 5A
- Contact Voltage: 250V AC ~3A
- Coil Consumed Power : 450 mW
- Contact arrangement: 1 Form C
- Contact Configuration: SPST (Single Pole Single Throw)
-
![HF3FD/009-H3F (576) Through Hole 4-Pin 9V 6A T73 SPST Sugarcube Relay]()
HF3FD/009-H3F (576) Through Hole 4-Pin 9V 6A T73 SPST Sugarcube Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Control Voltage: 9V DC
- DC Contacts Rating: 6A
- Contact arrangement: 1 Form A
- Contact Configuration: SPST
-
![HF3FA/006-HTF Through Hole 4-Pin 6V 10A SPDT Sugarcube Relay]()
HF3FA/006-HTF Through Hole 4-Pin 6V 10A SPDT Sugarcube Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Control Voltage: 6V DC
- AC Contacts Rating: 10A / 250V AC
- DC Contacts Rating: 10A / 28V DC
- Contact arrangement: 1 Form A
- Contact Configuration: SPST
-
![HF163F-L/12-HL2T Through Hole 12V 8A 5-Pin SPST Miniature Latching Type Relay]()
HF163F-L/12-HL2T Through Hole 12V 8A 5-Pin SPST Miniature Latching Type Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Mounting Type PCB Mount
- Coil voltage: 12V DC
- Contact Rating: 8A
- Coil Power: 400mW
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-
![HF49FD/024-1H12F Through Hole 4-Pin 24V 5A SPST Miniature Power Relay]()
HF49FD/024-1H12F Through Hole 4-Pin 24V 5A SPST Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Coil Voltage: 24VDC
- Switching Current: 5A
- Switching Voltage: 250V AC
- Switching Voltage: 30VDC
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-
![JQC3FF-24VDC-1ZTS Through Hole 5-Pin 18V 10A SPDT Sugarcube Relay]()
JQC3FF-24VDC-1ZTS Through Hole 5-Pin 18V 10A SPDT Sugarcube Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Control Voltage: 18V DC
- Load Current Capacity: Up to 10A
- Contact arrangement: 1 Form A
- Maximum Switching Power: 2770VA / 210W
- Contact Configuration: SPDT (Single Pole Double Throw)
-
![HF46F/12-HS1T Through Hole 12V 5A 4-Pin SPST Miniature Power Relay]()

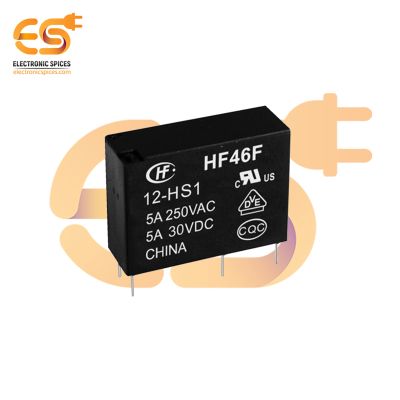

HF46F/12-HS1T Through Hole 12V 5A 4-Pin SPST Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Mounting Type PCB Mount
- Coil voltage: 12V DC
- Contact Rating: 5A
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-
![HFE21-I/12-DT2-R 12V 120A Through Hole 5-Pin Negative Polarity Relay Double Coil Latching]()
HFE21-I/12-DT2-R 12V 120A Through Hole 5-Pin Negative Polarity Relay Double Coil Latching
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Rated coil voltage: 12V DC
- Contact Rating: 120 AC
- Max. switching voltage: 440V AC
- Relay Type: Double-coil latching for energy-efficient operation.
-
![HF49FD/024-1H12F Through Hole 4-Pin 24V 5A SPST Miniature Power Relay With Relay Socket]()
HF49FD/024-1H12F Through Hole 4-Pin 24V 5A SPST Miniature Power Relay With Relay Socket
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Coil Voltage: 24V DC
- Switching Current: 5A
- Coil Consumed Power : 450mW
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
