Hongfa Technology Co.
Founded in 1984, Hongfa has Grown to Become a Powerhouse in the relay industry with over 30 Subsidiaries worldwide and presence in more than 120 Countries. Our Wide Product range includes relays, electrical appliances, Automation Equipment, and precision parts. With a Commitment to Continuous innovation and high - Quality standards, Hongfa provides reliable Solutions for Various industries, including automotive industrial control, smart grid, and new energy. Join us in our mission to bring people a more comfortable and convenient life through cutting-edge technology and exceptional products
Show more >>Showing 1–12 of 57 results
.jpg)
.jpg)
.jpg)
 (2).jpg)
.jpg)
.jpg)
-
![HF152F-T/006-1HT(103) 6V 20A Through Hole 4-Pin SPST Big Sugarcube Relay]()
HF152F-T/006-1HT(103) 6V 20A Through Hole 4-Pin SPST Big Sugarcube Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Contacts configuration: SPST
- Rated coil voltage: 6V DC
- Current Rating: 20A
- Pin Configuration: 4 pins for easy through-hole mounting.
-
![HF25F/024-H Through Hole 5-Pin 25V 20A SPST Subminiature High Capacity Power Relay]()
HF25F/024-H Through Hole 5-Pin 25V 20A SPST Subminiature High Capacity Power Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Control Voltage: 25V DC
- Load Current Capacity: Up to 20A
- Contact arrangement: 2 Form A
- Ambient Temperature: -40°C ~ 105°C
- Configuration: SPST (Single Pole Single Throw)
-
![HF118F/012-1Z1(136) Through Hole 12V 8A 5-Pin SPDT Miniature Power Relay]()
HF118F/012-1Z1(136) Through Hole 12V 8A 5-Pin SPDT Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Mounting Type PCB Mount
- Coil voltage: 12V DC
- Contact Rating: 8A
- Coil Power: 400 mW
- Contact arrangement: 1 Form C
- Contact Configuration: SPDT (Single Pole Double Throw).
-
![HF49FD/024-1H22GFL Through Hole 4-Pin 24V 5A SPST Miniature Power Relay]()
HF49FD/024-1H22GFL Through Hole 4-Pin 24V 5A SPST Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Coil Voltage: 24VDC
- Switching Current: 5A
- Switching Voltage: 250V AC
- Switching Voltage: 30VDC
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-
![JQX118F/012-1ZS1G(555) Through Hole 12V 8A 5-Pin SPDT Miniature Power Relay]()
JQX118F/012-1ZS1G(555) Through Hole 12V 8A 5-Pin SPDT Miniature Power Relay
Rs. 500.00Specification:-
- Package: DIP 5-Pin
- Mounting Type PCB Mount
- Coil voltage: 12V DC
- Contact Rating: 8A
- Coil Power: 400mW
- Contact arrangement: 1 Form C
- Contact Configuration: SPDT (Single Pole Double Throw)
-
![HFS32D/24D-24D3M-N Through Hole 4-Pin SPST 24V DC 100mA Solid State Relay]()
HFS32D/24D-24D3M-N Through Hole 4-Pin SPST 24V DC 100mA Solid State Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Input Current: 100 mA
- Output Voltage: 24V DC
- Configuration: SPST (Single Pole Single Throw)
- Low Power Consumption
-
![HF7520/005-HTP Through Hole 4-Pin 5V 20A Subminiature High Capacity Power Relay]()
HF7520/005-HTP Through Hole 4-Pin 5V 20A Subminiature High Capacity Power Relay
Rs. 500.00Specification:-
- Package: DIP 4-Pin
- Control Voltage: 5V DC.
- Load Current Capacity: Up to 20A
- Contact arrangement: 2 Form A
- Ambient Temperature: -40°C ~ 105°C
-
![HF158F/12-H3T Through Hole 12V 16A 6-Pin SPST Miniature High Power Relay]()
HF158F/12-H3T Through Hole 12V 16A 6-Pin SPST Miniature High Power Relay
Rs. 500.00Specification:-
- Package: DIP 6-Pin
- Coil voltage: 12V DC
- Contact Rating: 16A
- Contact arrangement : 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
-

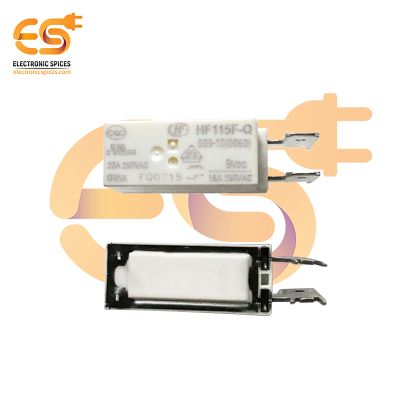

![JQX-115F-Q/009-1D Through Hole 9V 16A 6-Pin SPST Miniature Quick Connect Terminals Relay]()
JQX-115F-Q/009-1D Through Hole 9V 16A 6-Pin SPST Miniature Quick Connect Terminals Relay
Rs. 500.00Specification:-
- Package: DIP 6-Pin
- Coil voltage: 9V DC
- Contact Rating: 16A
- Coil Power: 0.4W
- Contact arrangement: 1 Form B
- Contact Configuration: SPST (Single Pole Single Throw)
-
![HFD3/24-S1R Surface Mount 8-Pin 24V 2A DPDT Signal Relay]()
HFD3/24-S1R Surface Mount 8-Pin 24V 2A DPDT Signal Relay
Rs. 500.00Specification:-
- Package: SMD 8-PIN
- Rated coil voltage: 12V DC
- Contact current max: 2A
- AC contacts rating: 0.5A / 125V AC
- DC contacts rating: 2A / 30V DC
- Switched voltage: max. 220V DC, max. 250V AC
- Contacts configuration: DPDT
- Coil power consumption: 140mW
- Operating temperature: -40°C to 85°C
-
![HFD41/5VDC-NS Through Hole 6-Pin 5V 2A SPDT Signal Relay]()
HFD41/5VDC-NS Through Hole 6-Pin 5V 2A SPDT Signal Relay
Rs. 500.00Specification:-
- Package: DIP 6-Pin
- Rated coil voltage: 5V DC
- Contact current max: 2A
- Coil voltage min: 3.8V DC
- Coil voltage max: 6.5V DC
- Contacts configuration: SPDT
-
![HFE7/12-2HS-L1 Through Hole 6-Pin 12V 8A SPST Subminiature Intermediate High Power Relay]()
HFE7/12-2HS-L1 Through Hole 6-Pin 12V 8A SPST Subminiature Intermediate High Power Relay
Rs. 500.00Specification:-
- Package: DIP 6-Pin
- Control Voltage: 12V DC
- Load Current Capacity: Up to 8A
- Contact arrangement: 2 Form A
- Ambient Temperature: -40°C ~ 105°C
- Configuration: SPST (Single Pole Single Throw)
