ADAPTER & SMPS CIRCUITS

LRS-75-12 Mean Well 12V 6A 72W Metal Power Supply SMPS

Specification:-

• Type: Enclosed Type
• Output Voltage: 12V
• Output Current: 6A
• Output Power: 72W
• Input Voltage: 100V/240V by switch
• IP Level: Non-Waterproof

DC 5V Hi-Link Power supply module HLK-10M05 pack of 5pcs

Specification

1. Output DC voltage               5V
2. Input AC voltage                  100-240v
3. Colour                                 black
4. Watt rating                          10 watt
5. AC input voltage range        100~240v

DC 12V Hi-Link Power supply module HLK-PM12 PACK OF 5pcs

Specification

1. Output DC voltage               12v
2. Input AC voltage                  100-240v
3. Colour                                 black
4. Watt rating                          3 Watt
5. AC input voltage range        90~ 240v

DC 3.3V-3A 10 Watt Hi-Link Power Supply Module HLK-10M03 Pack of 10pcs

Specification:

1. Output DC voltage               3.3V
2. Input AC voltage                  100-240v
3. Color                                     black
4. Watt rating                           10 Watt
5. AC input voltage range         90~ 240v
6. Model no                              10M03
7. output type                           single
8. dimension                             32x 20x 15mm
9. weight                                   18gm

9V 1.2A Power Adapter 5.5x2.5mm Plug Compatible with TP-Link Router

Specification:

1. Input voltage : 150V to 285V AC
2. Connector Size: 5.5mm x 2.5mm (Male Plug)
3. Output voltage : 9V
4. Power rating : 1.2A
5. Max. frequency range : 50 to 60 Hz
6. Model no: SSP-091
7. High-quality adapter with the latest and advanced technology

DC 72V TO 12V 5A 60W G-Energy Step Down Voltage Converter Power Supply Module IP68

Specification:-

• Input Voltage Range: 72V DC
• Output Voltage: 12V
• Output Current: 5A
• Output Power: 60W
• Operating Temperature: -40°C to +85°C
• Conversion Efficiency: Up to 94%

12V 16.6A 200W SMPS LED Driver Power Supply | AC 175–265V to 12V DC Converter

Specification:-

1. Output Voltage: 12V
2. Output Current: 16.6A
3. Output Power: 200W
4. Input Voltage: 175V/265V AC
5. Frequency: 50/60Hz
6. IP Level-Waterproof

DC 24V-0.83A 20 Watt Hi-Link Power Supply Module HLK-20M24 Pack of 1pcs

Specification:-

1. Output DC voltage                24V
2. Input AC voltage                  100-240v
3. Colour                                  Black
4. Watt rating                           20 Watt
5. AC output voltage range     24VDC -0.83A
6. Model Number                     HLK-20M24
7. output type                           single
8. dimension                              57x 33x 22.5mm
9. weight                                    76 gm

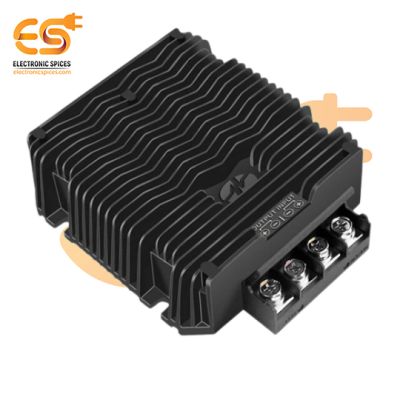

DC 48V TO 24V 40A 960W G-Energy Step down Voltage Converter Power Supply Module IP68

Specification:-

• Input Voltage Range: 48V DC
• Output Voltage: 24V
• Output Current: 60A
• Output Power: 960W
• Operating Temperature: -20°C to +80°C
• Dimensions: 100 x 80x 36mm (approx)
• Conversion Efficiency: Up to 95%

DC 9V-4.4A 40 Watt Hi-Link Power Supply Module HLK-40M09 Pack of 1pcs

Specification

1. Output DC voltage               9V
2. Input AC voltage                  100-240v
3. Colour                                 black
4. Watt rating                          40Watt
5. AC input voltage range        90~ 240v
6. Model no                             PM03
7. output type                          single
8. dimension                            57x 33x 22.5mm
9. weight                                  81gm

DC 9V-0.22A 2 Watt Hi-Link Power Supply Module HLK-2M09 Pack of 1pcs

Specification

1. Output DC voltage: 9V
2. Input AC voltage: 100-240v
3. Colour: black
4. Watt rating: 2 Watt
5. AC input voltage range: 90~ 240v
6. Model no. 2M09
7. output type: single
8. dimension: 30x 16x 19mm
9. weight: 17gm

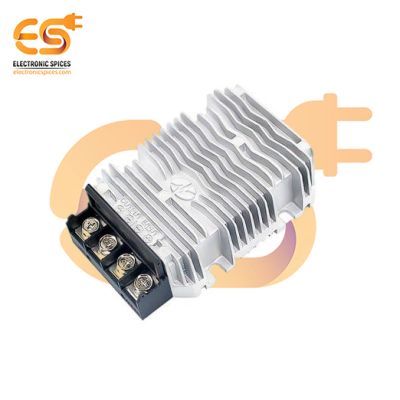

DC 24V TO 12V 60A M 720W G-Energy Step Down Voltage Converter Power Supply Module IP68

Specification:-

• Input Voltage Range: 20V – 30V DC
• Output Voltage: 12V
• Output Current: 60A
• Output Power: 720W
• Operating Temperature: -40°C to +85°C
• Conversion Efficiency: Up to 96%
