ADAPTER & SMPS CIRCUITS

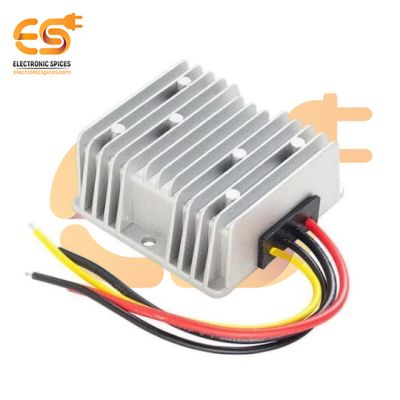

G-Energy 15-80V to 12V 2A 24W DC to DC Buck-Boost Converter Step-Up & Down Module IP68

Specification:-

• Input Voltage Range: 15V to 80V
• Output Voltage: 12V DC
• Output Current: 2A
• Output Power: 24W
• Conversion Efficiency: Up to 90%
• Operating Temperature: -40°C to +85°C

DC 15V-1.3 A 20 Watt Hi-Link Power Supply Module HLK-20M15 Pack of 1pcs

Specification

1. Output DC voltage               15V
2. Input AC voltage                  100-240v
3. Colour                                 black
4. Watt rating                          2 Watt
5. AC input voltage range        90~ 240v
6. Model no                             20M15
7. output type                          single
8. dimension                            57x 33x 22.5mm
9. weight                                  76gm

DC 3.3V-3A 10 Watt Hi-Link Power Supply Module HLK-10M03 Pack of 10pcs

Specification:

1. Output DC voltage               3.3V
2. Input AC voltage                  100-240v
3. Color                                     black
4. Watt rating                           10 Watt
5. AC input voltage range         90~ 240v
6. Model no                              10M03
7. output type                           single
8. dimension                             32x 20x 15mm
9. weight                                   18gm

G-Energy 9-40V to 24V 6A 120W DC to DC Converter Boost Voltage Regulator IP68

Specification:-

• Input Voltage Range: DC 12V/24V
• Input Voltage Range: 9-40V DC
• Output Voltage: 24V DC
• Output Current: 6A
• Conversion Efficiency: Up to 94%
• Operating Temperature: -40°C to +80°C

DC 24V-0.83A 20 Watt Hi-Link Power Supply Module HLK-20M24 Pack of 1pcs

Specification:-

1. Output DC voltage                24V
2. Input AC voltage                  100-240v
3. Colour                                  Black
4. Watt rating                           20 Watt
5. AC output voltage range     24VDC -0.83A
6. Model Number                     HLK-20M24
7. output type                           single
8. dimension                              57x 33x 22.5mm
9. weight                                    76 gm

48V TO 24V 60A 1440W G-Energy Buck DC to DC Boost Step Down Up Converter IP68

Specification:-

• Input Voltage Range: 30V – 60V DC
• Output Voltage: 24V
• Output Current: Up to 60A
• Output Power: Up to 1440W
• Operating Temperature: -40°C to +85°C
• Dimensions: 200mm x 100mm x 50mm (approx)
• Conversion Efficiency: Up to 95%

LRS-350-36 Mean Well 36V 9.7A 349.2W Metal Power Supply SMPS

Specification:-

• Type: Enclosed Type
• Output Voltage: 36V
• Approx. Wattage: 349W
• Input Voltage: 115V/230V by switch
• IP Level: Non-Waterproof

XW-5290 DC 52-90V to 48V 2A 96W G-Energy DC-DC Buck Converter Power Supply Step Down IP68

Specification:-

• Input Voltage Range: 52V to 90V DC
• Output Voltage: 48V DC
• Output Current: 2A
• Output Power: 96W
• Operating Temperature: -40°C to +85°C
• Dimensions: 74mm x 74mm x 32mm (approx)
• Conversion Efficiency: Up to 94%

G-Energy 12V to 24V 15A 360W DC to DC Converter Step-UP Voltage Regulator Module IP68

Specification:-

• Input Voltage Range: 10-23V
• Output Voltage: 24V
• Maximum Output Current: Up to 15A
• Maximum Output Power: Up to 360W
• Converter Type: Boost Converter (Step Up)

18-36V to 12V 10A 120W G-Energy DC-DC Buck Converter Step Down Voltage Regulator Module IP68

Specification:-

• Input Voltage Range: 18-36V
• Output Voltage: 12V
• Output Current: 10A
• Output Power: 120W
• Operating Temperature: -40°C to +85°C
• Conversion Efficiency: Up to 94%

G-energy F0512S-1WR3 5V to 12V DC/DC 1W Isolated Converter Module

Specification:-

• Model: F0512S-1WR3
• Input Voltage: 5V DC
• Output Voltage: 12V DC
• Output Current: 83mA
• Output Power: 1W
• Isolation Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C

DC 9V-0.33A 3 Watt Hi-Link Power Supply Module HLK-PM09 Pack of 1pcs

Specification

1. Output DC voltage               9V
2. Input AC voltage                  100-240v
3. Colour                                 black
4. Watt rating                          3Watt
5. AC input voltage range        90~ 240v
6. Model no                             PM09
7. output type                          single
8. dimension                           57x 33x22.5mm
9. weight                                  81gm
