FAST RECOVERY RECTIFIERS

FR102 100V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 100V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : DO-41

1F1 50V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 50V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : R-1

FR105 600V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 600V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 250ns
• Package : DO-41

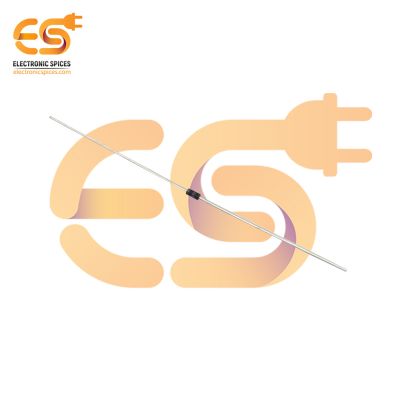

1F6 800V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 800V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 500ns
• Package : R-1

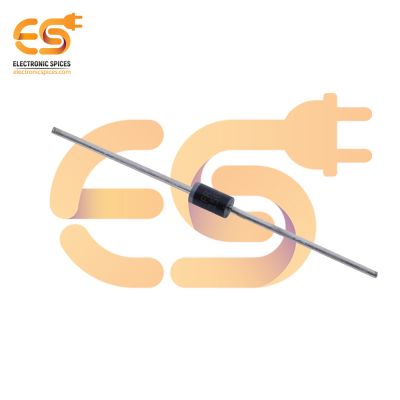

DO-15, FR156 800V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 800v
2. Maximum average rectified current : 1.5A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.5V
8. Maximum reverse recovery time  500ns

DO-15, FR201 50V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 50v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

DO-15, FR157 1000V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 1000v
2. Maximum average rectified current : 1.5A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.5V
8. Maximum reverse recovery time  5050ns

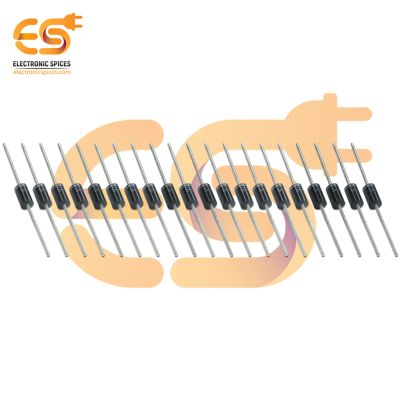

DO-201AD SF58G 600V Fast Recovery Rectifiers Diode Pack of 50

Specification:-

• Case:  DO-201AD
• Capacitance: 30pF
• Maxim forward voltage: 1.7V
• Reverse Recovery Time: 35 ns
• Non-Repetitive Peak Forward Surge Current: 150A
• Maximum respective peak reverse voltage: 600 V
• Current - Average Rectified (Io): 5A
• Operating Temperature - Junction: -65°C ~ 150°C

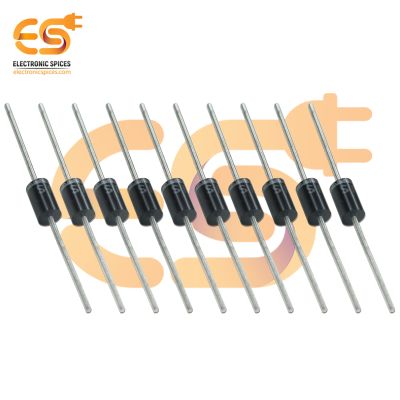

DO-201AD SF58G 600V Fast Recovery Rectifiers Diode Pack of 20

Specification:-

• Case:  DO-201AD
• Capacitance: 30pF
• Maxim forward voltage: 1.7V
• Reverse Recovery Time: 35 ns
• Non-Repetitive Peak Forward Surge Current: 150A
• Maximum respective peak reverse voltage: 600 V
• Current - Average Rectified (Io): 5A
• Operating Temperature - Junction: -65°C ~ 150°C

DO-201AD SF58G 600V Fast Recovery Rectifiers Diode Pack of 1250

Specification:-

• Case:  DO-201AD
• Capacitance: 30pF
• Maxim forward voltage: 1.7V
• Reverse Recovery Time: 35 ns
• Non-Repetitive Peak Forward Surge Current: 150A
• Maximum respective peak reverse voltage: 600 V
• Current - Average Rectified (Io): 5A
• Operating Temperature - Junction: -65°C ~ 150°C
