FAST RECOVERY RECTIFIERS

DO-15, FR151 50V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 50v
2. Maximum average rectified current : 1.5A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.5V
8. Maximum reverse recovery time  150ns

BA158 600V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 600V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 250ns
• Package : DO-41

FR105S 600V ,A-405 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 600V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 250ns
• Package : A-405

1F5 600V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 600V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 250ns
• Package : R-1

FR103S 200V ,A-405 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 200V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : A-405

BA157 400V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 400V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : DO-41

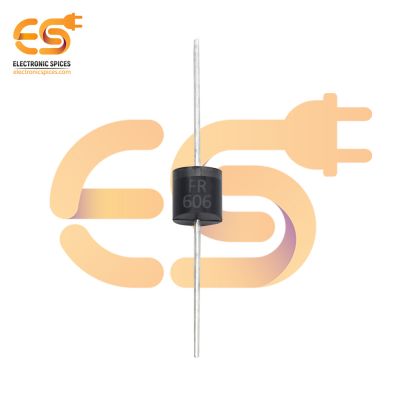

R-6, FR606 800V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 800v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

DO-15, BY298 400V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 400v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

R-6, FR601 50V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 50v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

DO-15, FR206 800V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 800v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

FR101 50V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 50V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : DO-41

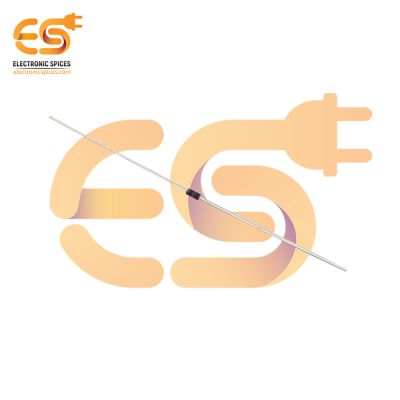

1F3 200V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 200V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : R-1
