POTENTIOMETER

SC458G A10K 75mm Dual channel linear slide potentiometer pack of 1 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 10KΩ
3. Total length of the pot : 75mm
4. Travel length : 60mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

SC4580GH A10K 60mm Single channel linear slide potentiometers pack of 10 pcs

Specification

1. Potentiometer type: slide
2. Maximum resistance: 10KΩ
3. The total length of the pot: is 60mm
4. Travel length: 52mm
5. Power rating: 0.25W
6. Element material: carbon
7. Actuator type: Lever
8. Tolerance: 20%

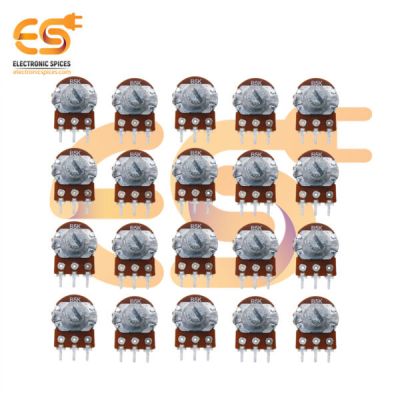

5K Rotary potentiometer round shaft handle 3 pins pack of 20pcs

Specification

1. Type : Single turn rotary potentiometer
2. Resistance value : 5K
3. Power rating : 0.3W
4. Shaft : 7 mm round shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

SC6021G A50K 75mm Dual channel linear slide potentiometers pack of 10 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 67mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

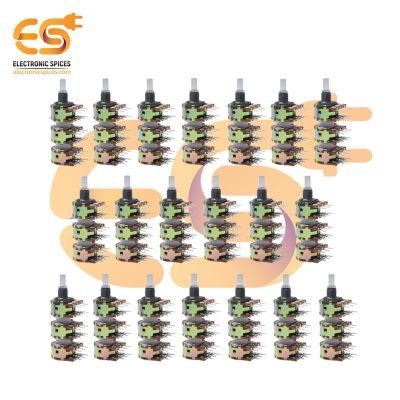

100K Master triple gang potentiometer D-shape shaft 18 pins pack of 20pcs

Specifications:-

• Potentiometer: 100K
• Use: Stereo Audio volume controller
• Type: Master Triple Gang
• Turn: 1 turn
• Shaft : D shaft
• Shaft length: 7mm

5-Pin D Shaft Detents Points 360 Degree Rotary Encoder Switch Push Button Potentiometer

Specification:-

• Type: Momentary
• Material: Metal
• Shaft Size: 6 x 13mm
• Thread dia:7mm
• Total Size: 12 x 12 x 30mm
• Color: Blue, Silver Tone
• D-Shaped Shaft
• Shaft movement direction: 360 degree

50K Rotary potentiometer round shaft handle 3 pins pack of 20pcs

Specification

1. Type : Single turn rotary potentiometer
2. Resistance value : 5K
3. Power rating : 0.3W
4. Shaft : 7 mm round shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

Blue color Potentiometer knob Rotary switch caps pack of 50pcs

Specification:

1. Hight:                    15.6mm
2. diameter:               15.9mm
3. Material:                 plastic
4. Indicator colour:     white
5. Body colour:           Black & Blue

100K dual gang rotary potentiometer (A100,B100) round shaft handle 6 pins pack of 20pcs

Specification

1. Type: dual gang rotary potentiometer
2. Resistance value: 100K (A100, B100)
3. Power rating: 0.3W
4. Shaft: 7 mm round shaft
5. Maximum Input Voltage:  200Vdc
6. Rotational Life:  2000K cycles

10K potentiometer D shaft handle 3 pin pack of 2pcs

specification

1. Type : Single turn potentiometer
2. Resistance value : 10K
3. Power rating : 0.3W
4. Shaft : D shape shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

B10k Ohm 6-pin Composition Rotary Taper Potentiometer Green/Silver Tone

Specification:-

• Type: Single Linear (Type B)
• Mounting Style: Through Hole
• PIN numbers: 6
• Shaft Diameter: 6 mm
• Shaft Length: 10 mm
• Resistance value: B10K Ohm
• Color: Green, Silver Tone

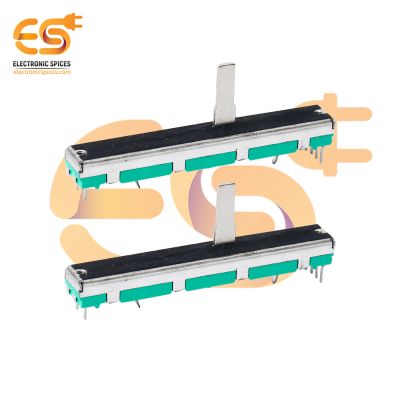

SC4580GH A10K 60mm Single channel linear slide potentiometer pack of 5 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 10KΩ
3. Total length of the pot : 60mm
4. Travel length : 52mm
5. Power rating : 0.25W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%
