POTENTIOMETER

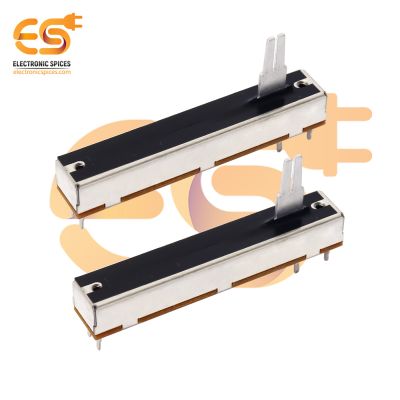

SC458G B50K 75mm Dual channel linear slide potentiometer pack of 5 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 60mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

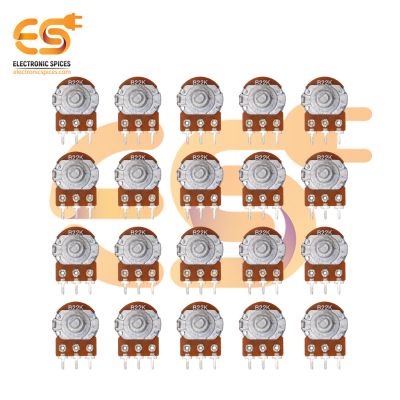

22K Rotary potentiometer D shape shaft handle 3 pins pack of 20pcs

Specification

1. Type : Single-turn rotary potentiometer
2. Resistance value: 22K
3. Power rating : 0.3W
4. Shaft : 7 mm D shape shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

SC6080GH B20K 75mm Single channel linear slide potentiometer pack of 5pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 20KΩ
3. Total length of the pot : 75mm
4. Travel length : 67mm
5. Power rating : 0.25W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

SC6021G A50K 75mm Dual channel linear slide potentiometer pack of 5 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 67mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

Orange color Potentiometer knob Rotary switch caps pack of 20pcs

Specifications

1. Material: Bakelite
2. Color: Orange and White
3. Uses : φ6-axis potentiometer, band switches, buttons, and so on
4. Spot : Shaft hole 6mm 6.4mm
5. Diameter : 16mm (approx)
6. Height : 15mm (approx)
7. Fixation : By pressing down

100K potentiometer D shaft handle 3 pin pack of 5pcs

Specification

1. Type : Single turn potentiometer
2. Resistance value : 100K
3. Power rating : 0.3W
4. Shaft : D shape shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

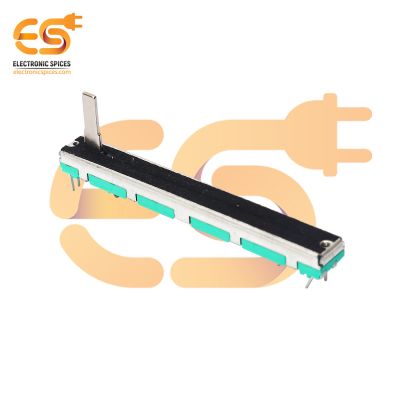

SC6080GH A50K 75mm Single channel linear slide potentiometer pack of 1pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 67mm
5. Power rating : 0.25W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

SC608N A10K 90mm Single channel linear slide potentiometer pack of 5pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 10KΩ
3. Total length of the pot : 90mm
4. Travel length : 74mm
5. Power rating : 0.25W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

50K Rotary potentiometer 14mm long round shaft handle 3 pins pack of 20pcs

Specification

1. Type : Single turn rotary potentiometer
2. Resistance value : 50K
3. Power rating : 0.3W
4. Shaft : 14 mm round shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

SC608N A10K 90mm Single channel linear slide potentiometer pack of 10pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 10KΩ
3. Total length of the pot : 90mm
4. Travel length : 74mm
5. Power rating : 0.25W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

SC458G B50K 75mm Dual channel linear slide potentiometers pack of 10 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 60mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%

SC6021G A50K 75mm Dual channel linear slide potentiometer pack of 1 pcs

Specification

1. Potentiometer type : slide
2. Maximum resistance : 50KΩ
3. Total length of the pot : 75mm
4. Travel length : 67mm
5. Power rating : 0.5W
6. Element material : carbon
7. Actuator type : Lever
8. Tolerance : 20%
