BMS HARDWARE

Showing 1–12 of 223 results

  • 4S 80AMP LFP BMS Hardware (ZP04S016)
    BMS HARDWARE
    4S 80AMP LFP BMS Hardware (ZP04S016)
    Rs. 1219.00

    Specification:-

    • Model: ZP04S016
    • Charging voltage: 3.6V Number of strings
    • Cell voltage range: 2.20~3.75V
    • Continuous charging current: 30A
    • Continuous discharging current: 60A
    • Consumption of running: ≤150uA
    • -Circuit resistance: ≤10mR
    • Operating temperature:-20°C-75°C
    • Model no. (7ffb)
    (1)
    Rs. 1219.00
  • 8-17S 100A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)
    BMS HARDWARE
    8-17S 100A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)
    Rs. 5949.00

    Specification:-

    • Model Number: R24TK1A (763e)
    • Cell sampling voltage range: 1.5V-4.9V
    • Operating voltage range: >10V
    • Balance method: Active Balance
    • Working power consumption: ≤1.25W
    • working temperature: -40°C~85°C
    (1)
    Rs. 5949.00
  • Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)
    BMS HARDWARE
    Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)
    Rs. 7579.00

    Specification:-

    • Cell specifications: 8~24 strings of LiFePO4 battery
    • Interface type: Charge and discharge are both at the same port
    • Charging voltage: 3.60V*Number of strings
    • Cell voltage range: 2.20~3.75V
    • Continuous charging current: 200A
    • Continuous discharging current: 200A
    • Consumption of running: ≤20mA
    • Operating temperature: -20°C~75°C
    • Model No.(494a)
    (1)
    Rs. 7579.00
  • 3S 10A NMC Battery Protection and Charger BMS Hardware with Nickel
    BMS HARDWARE
    3S 10A NMC Battery Protection and Charger BMS Hardware with Nickel
    Rs. 99.00

    Specification:-

    • Input Voltage B+ to B-: -0.3~+20V
    • Overcharge Detection voltage/1CELL: 4.28±0.05V
    • Over discharge Detection voltage/1CELL: 2.8±0.1V
    • Over current: 10-20A
    • Suggest working temperature: -20°C~+60°C
    • Model No.(0538)
    (1)
    Rs. 99.00
  • Smart BMS LiFePO4 20S 60V 60A Common Port with Balance
    BMS HARDWARE
    Smart BMS LiFePO4 20S 60V 60A Common Port with Balance
    Rs. 5759.00

    Specification:-

    • Battery Configuration: Smart BMS LiFePO4 20S 60V 60A
    • Continuous Discharge Current: 60A
    • Over-Voltage Protection: 3.8V
    • Charge Current: 30A
    • Charge Voltage: 73V
    • Model no. (40f1)
    (1)
    Rs. 5759.00
  • Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)
    BMS HARDWARE
    Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)
    Rs. 1129.00

    Specification:-

    • Cell specifications: 10~14 strings of LiFePO4 battery
    • Interface type: Charge and discharge are both at the same port
    • Charging voltage: 3.60V*Number of strings
    • Cell voltage range: 2.20~3.75V
    • Continuous charging current: 20A
    • Continuous discharging current: 20A
    • Consumption of running: ≤10mA
    • Operating temperature: -20°C~75°C
    • Model No.(7d41)
    (1)
    Rs. 1129.00

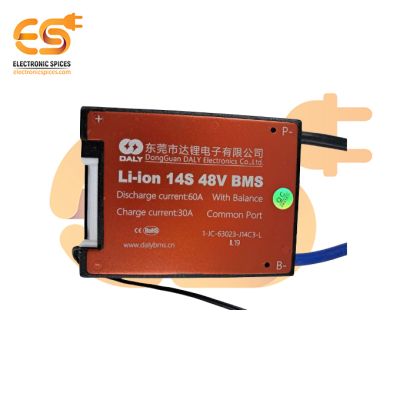

  • 14S 60A BMS NMC Hardware Waterproof
    BMS HARDWARE
    14S 60A BMS NMC Hardware Waterproof
    Rs. 2539.00

    Specification:-

    • Continuous Discharge Current: 60A
    • Over-Voltage Protection: 4.2V
    • Charge Current: 15A
    • Charge Voltage: 58.8V
    • Battery Configuration: 14S for NMC (Nickel Manganese Cobalt) Lithium-Ion
    • Model no. (10e9)
    (1)
    Rs. 2539.00
  • 16S 50A LFP BMS Hardware (ZP16S011)
    BMS HARDWARE
    16S 50A LFP BMS Hardware (ZP16S011)
    Rs. 1329.00

    Specification:-

    • Model: ZP16S011
    • charging voltage: 3.6V Number of strings
    • Cell voltage range: 2.0~3.75V
    • Continuous charging current: 50A
    • Continuous discharging current: 50A
    • Consumption of running: ≤150uA
    • -Circuit resistance: ≤10mR
    • Operating temperature: -20°C-75°C
    • Model no. (7664)

    (1)
    Rs. 1329.00
  • 23S 80A BMS LFP Hardware Waterproof
    BMS HARDWARE
    23S 80A BMS LFP Hardware Waterproof
    Rs. 5189.00

    Specification:-

    • Battery Configuration: 23S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 80A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 83.95V
    • Model no. (10f0)
    (1)
    Rs. 5189.00
  • 10S 30A BMS NMC Hardware Waterproof
    BMS HARDWARE
    10S 30A BMS NMC Hardware Waterproof
    Rs. 1339.00

    Specification:-

    • Continuous Discharge Current: 30A
    • Over-Voltage Protection: 4.2V
    • Charge Current: 10A
    • Charge Voltage: 42V
    • Battery Configuration: 10S for NMC (Nickel Manganese Cobalt) Lithium-Ion
    • Model no. (15da)
    (1)
    Rs. 1339.00
    Join Waitlist
  • Smart LiFePO4 8-24S 40A BMS (BD6A24S6PY)
    BMS HARDWARE
    Smart LiFePO4 8-24S 40A BMS (BD6A24S6PY)
    Rs. 4179.00

    Specification:-

    • Number of Battery Strings (Lifepo4): 8S-24S
    • Balance Current: 0.4A
    • Continuous charging current: 40A
    • Continuous discharging current: 40A
    • Voltage Acquisition Accuracy: ±5 mV
    • Single Cell Voltage Range: 1.5V
    • Model No.(7979)
    (1)
    Rs. 4179.00
  • Smart BMS 10-17S 60A Same Port for Charge and Discharge (SP17S005)
    BMS HARDWARE
    Smart BMS 10-17S 60A Same Port for Charge and Discharge (SP17S005)
    Rs. 2449.00

    Specification:-

    • Cell specifications: 10~17 strings of Lithium Iron Battery
    • Interface type: Charge and discharge are both at the same port
    • Charging voltage: 4.20V*Number of strings
    • Cell voltage range: 2.8~4.25V
    • Continuous charging current: 60A
    • Continuous discharging current: 60A
    • Consumption of running: ≤10mA
    • Consumption of sleep: ≤500uA
    • Circuit resistance: ≤10mR
    • Operating temperature: -30°C~75°C
    • Model No.(73b7)
    (1)
    Rs. 2449.00
