BMS HARDWARE
Showing 1–12 of 283 results
.jpg)
 (1).jpg)
 (2).jpg)
.jpg)
.jpg)
.jpg)
.jpg)
 (76ba).jpg)
 (4796).jpg)
 (51a4).jpg)
 10-14S.jpg)
 SMART BMS 80A (R24TK1A) 4-8S.jpg)
-
![Smart BMS LiFePO4 4S 12V 100A Common Port with Balance]()
Smart BMS LiFePO4 4S 12V 100A Common Port with Balance
Rs. 4109.00Specification:-
- Battery Configuration: Smart BMS LiFePO4 4S 12V 100A
- Continuous Discharge Current: 100A
- Over-Voltage Protection: 3.8V
- Charge Current: 50A
- Charge Voltage: 14.6V
-
![11S 20A BMS LFP Hardware Waterproof]()

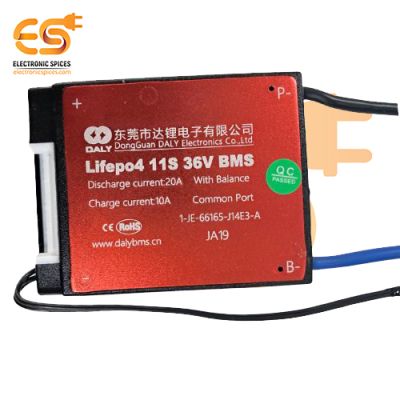

11S 20A BMS LFP Hardware Waterproof
Rs. 889.00Specification:-
- Battery Configuration: 11S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 20A
- Over-Voltage Protection: 3.8V
- Balancing Current: 50mA
- Charge Voltage: 40.15V
-
![Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)]()
Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)
Rs. 7579.00Specification:-
- Cell specifications: 8~24 strings of LiFePO4 battery
- Interface type: Charge and discharge are both at the same port
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 200A
- Continuous discharging current: 200A
- Consumption of running: ≤20mA
- Operating temperature: -20°C~75°C
-
![Smart BMS 6-22S 60A Same Port for Charge and Discharge (SP22S003B)]()
Smart BMS 6-22S 60A Same Port for Charge and Discharge (SP22S003B)
Rs. 3209.00Specification:-
- Cell specifications: 6~22 strings of Lithium Iron Battery
- Interface type: Charge and discharge are both at the same port
- charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 60A
- Continuous discharging current: 60A
- Consumption of running: ≤15mA
- Consumption of sleep: ≤2000uA
- Operating temperature: -20°C~75°C
-
![4S 120A BMS LFP Hardware Waterproof]()
4S 120A BMS LFP Hardware Waterproof
Rs. 4539.00Specification:-
- Battery Configuration: 4S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 120A
- Continuous Charge Current: 60A
- Over-Voltage Protection: 3.75±0.05V
- Balancing Current: 30±5mA
- Charge Voltage: 14.6V
- Working Temp: -20~70 °C
- Working current: 500 uA
-
![15S 100A BMS LFP Hardware Waterproof]()
15S 100A BMS LFP Hardware Waterproof
Rs. 3649.00Specification:-
- Battery Configuration: 15S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 100A
- Over-Voltage Protection: 3.8V
- Balancing Current: 50mA
- Charge Voltage: 54.75V
-
![20S 40A BMS NMC Hardware Waterproof]()
20S 40A BMS NMC Hardware Waterproof
Rs. 1839.00Specification:-
- Continuous Discharge Current: 40A
- Over-Voltage Protection: 4.2V
- Charge Current: 20A
- Charge Voltage: 84V
- Battery Configuration: 20S for NMC (Nickel Manganese Cobalt) Lithium-Ion
-
![Smart ESS BMS LFP 8-16S 150A Same Port for Charge and Discharge (UP16S015)]()
Smart ESS BMS LFP 8-16S 150A Same Port for Charge and Discharge (UP16S015)
Rs. 9919.00Specification:-
- Cell specifications: 16 strings of LFP battery
- Interface type: Charge and discharge are both at the same port
- Charging voltage: 3.65V *Number of strings
- Continuous charging current: 150A
- Continuous discharging current: 150A
- Consumption of running: ≤25mA
- Consumption of sleep Mode: ≤150uA
- Consumption of power down Mode: ≤20uA
- Circuit resistance: ≤10mR
- Operating temperature: -20°C~75°C
-
![Smart BMS 8-24S 60A Same Port for Charge and Discharge (SP24S007)]()
Smart BMS 8-24S 60A Same Port for Charge and Discharge (SP24S007)
Rs. 4569.00Specification:-
- Cell specifications: 8~24 strings of LiFePO4 battery
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 60A
- Continuous discharging current: 60A
- Consumption of running: ≤20mA
-
![Smart BMS 8-24S 40A Same Port for Charge and Discharge (SP24S007)]()
Smart BMS 8-24S 40A Same Port for Charge and Discharge (SP24S007)
Rs. 4079.00Specification:-
- Cell specifications: 8~24 strings of LiFePO4 battery
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 40A
- Continuous discharging current: 40A
- Consumption of running: ≤20mA
-
![Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)]()
Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)
Rs. 1129.00Specification:-
- Cell specifications: 10~14 strings of LiFePO4 battery
- Interface type: Charge and discharge are both at the same port
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 20A
- Continuous discharging current: 20A
- Consumption of running: ≤10mA
- Operating temperature: -20°C~75°C
-
![4-8S 80A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)]()
4-8S 80A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)
Rs. 5349.00Specification:-
- Model Number: R24TK1A
- Cell sampling voltage range: 1.5V-4.9V
- Operating voltage range: >10V
- Balance method: Active Balance
- Working power consumption: ≤1.25W
- working temperature: -40°C~85°C
