BMS HARDWARE

Showing 1–12 of 283 results

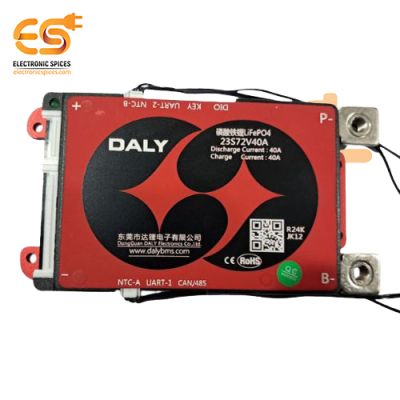

  • 23S 40A BMS LFP Hardware Waterproof
    BMS HARDWARE
    23S 40A BMS LFP Hardware Waterproof
    Rs. 2059.00

    Specification:-

    • Battery Configuration: 23S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 40A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 83.95V
    (1)
    Rs. 2059.00
  • Smart ESS BMS LFP 8-16S 250A Same Port for Charge and Discharge (UP16S010)
    BMS HARDWARE
    Smart ESS BMS LFP 8-16S 250A Same Port for Charge and Discharge (UP16S010)
    Rs. 12039.00

    Specification:-

    • Cell specifications: 16 lithium iron strings
    • Interface Type: Same port for charging and discharging
    • Recommended charging voltage: 3.6V*16
    • Cell voltage range: 2.7~3.65V
    • Continuous charging current: 200A
    • Continuous discharge current: 200A
    • Operating power consumption: ≤40mA
    • Sleep power consumption: ≤0.4mA
    • Protection board conduction internal resistance: ≤10mR
    • Operating temperature: - 20°C~75°C
    (1)
    Rs. 12039.00
  • Smart BMS 8-24S 80A Same Port for Charge and Discharge (SP24S007)
    BMS HARDWARE
    Smart BMS 8-24S 80A Same Port for Charge and Discharge (SP24S007)
    Rs. 4889.00

    Specification:-

    • Cell specifications: 8~24 strings of LiFePO4 battery
    • Charging voltage: 3.60V*Number of strings
    • Cell voltage range: 2.20~3.75V
    • Continuous charging current: 60A
    • Continuous discharging current: 60A
    • Consumption of running: ≤20mA

    (1)
    Rs. 4889.00
  • 8-17S 40A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)
    BMS HARDWARE
    8-17S 40A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)
    Rs. 4609.00

    Specification:-

    • Model Number: R24TK1A
    • Cell sampling voltage range: 1.5V-4.9V
    • Operating voltage range: >10V
    • Balance method: Active Balance
    • Working power consumption: ≤1.25W
    • working temperature: -40°C~85°C
    (1)
    Rs. 4609.00
  • 15S 60A BMS LFP Hardware Waterproof
    BMS HARDWARE
    15S 60A BMS LFP Hardware Waterproof
    Rs. 2089.00

    Specification:-

    • Battery Configuration: 15S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 60A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 54.75V
    (1)
    Rs. 2089.00
  • 14S 60A BMS NMC Hardware Waterproof
    BMS HARDWARE
    14S 60A BMS NMC Hardware Waterproof
    Rs. 2309.00

    Specification:-

    • Continuous Discharge Current: 60A
    • Over-Voltage Protection: 4.2V
    • Charge Current: 15A
    • Charge Voltage: 58.8V
    • Battery Configuration: 14S for NMC (Nickel Manganese Cobalt) Lithium-Ion
    (1)
    Rs. 2309.00
  • 12S 30A BMS LFP Hardware Waterproof
    BMS HARDWARE
    12S 30A BMS LFP Hardware Waterproof
    Rs. 1419.00

    Specification:-

    • Battery Configuration: 12S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 30A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 43.8V
    (1)
    Rs. 1419.00
  • 19S 30A BMS LFP Hardware Waterproof
    BMS HARDWARE
    19S 30A BMS LFP Hardware Waterproof
    Rs. 1849.00

    Specification:-

    • Battery Configuration: 19S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 30A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 69.35V
    (1)
    Rs. 1849.00

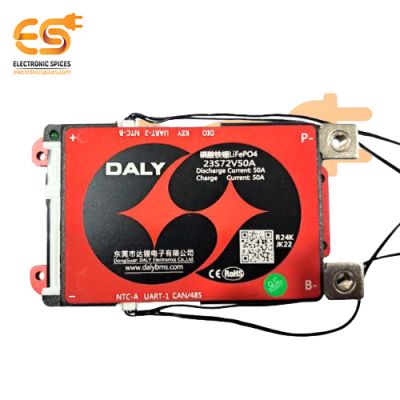

  • 23S 50A BMS LFP Hardware Waterproof
    BMS HARDWARE
    23S 50A BMS LFP Hardware Waterproof
    Rs. 2799.00

    Specification:-

    • Battery Configuration: 23S for LiFePO4 (LFP) batteries
    • Continuous Discharge Current: 50A
    • Over-Voltage Protection: 3.8V
    • Balancing Current: 50mA
    • Charge Voltage: 83.95V
    (1)
    Rs. 2799.00
  • 2S 4AMP LFP BMS Hardware
    BMS HARDWARE
    2S 4AMP LFP BMS Hardware
    Rs. 29.00

    Specification:-

    • Charging Voltage: DC:7.3V CC/CV
    • Max continuous charging current: 4A
    • Over charge detection voltage: 3.65±0.05V
    • Over discharge detection voltage: 2.5±0.05V
    • Over current detection current: 0.2±0.3V
    • Operating Temperature: -45°C to +65°C
    • Storage Temperature: -45°C to +85°C
    (1)
    Rs. 29.00
  • Smart ESS BMS LFP 16S 100A Common Port with Balance
    BMS HARDWARE
    Smart ESS BMS LFP 16S 100A Common Port with Balance
    Rs. 9069.00

    Specification:-

    • Cell specifications: 16 strings of LFP battery
    • Interface type: Charge and discharge are both at the same port
    • Charging voltage: 3.65V*Number of strings
    • Continuous charging current: 50A
    • Continuous discharging current: 100A
    • Consumption of running: ≤60mA
    (1)
    Rs. 9069.00
  • Smart ESS BMS LFP 8-16S 100A Same Port for Charge and Discharge (UP16S008)
    BMS HARDWARE
    Smart ESS BMS LFP 8-16S 100A Same Port for Charge and Discharge (UP16S008)
    Rs. 8079.00

    Specification:-

    • Cell specifications: 16 strings of LFP battery
    • Interface type: Charge and discharge are both at the same port
    • Charging voltage: 3.65V*Number of strings
    • Continuous charging current: 100A
    • Continuous discharging current: 100A
    • Consumption of running: ≤25mA
    • Consumption of sleep Mode: ≤100uA
    • Consumption of power down Mode: ≤20uA
    • Circuit resistance: ≤10mR
    • Operating temperature: -20°C~75°C
    (1)
    Rs. 8079.00
