BMS (Battery Management System)
Showing 1–12 of 306 results
 10-14S.jpg)
 10-14S.jpg)
.jpg)
.jpg)
.jpg)
 (2).jpg)
 (2).jpg)
 (1).jpg)
 (1).jpg)
.jpg)
.jpg)
-
![Smart BMS 10-14S 30A Same Port for Charge and Discharge (SP14S004)]()
Smart BMS 10-14S 30A Same Port for Charge and Discharge (SP14S004)
Rs. 1359.00Specification:-
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 40A
- Continuous discharging current: 40A
- Consumption of running: ≤10mA
- Operating temperature: -20°C~75°C
- Model No.(7d42)
-
![Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)]()
Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)
Rs. 1129.00Specification:-
- Cell specifications: 10~14 strings of LiFePO4 battery
- Interface type: Charge and discharge are both at the same port
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 20A
- Continuous discharging current: 20A
- Consumption of running: ≤10mA
- Operating temperature: -20°C~75°C
- Model No.(7d41)
-
![Smart BMS (Parallel) LiFePO4 16S 48V 100A Common Port with Balance]()
Smart BMS (Parallel) LiFePO4 16S 48V 100A Common Port with Balance
Rs. 6469.00Specification:-
- Battery Configuration: Smart BMS LiFePO4 16S 48V 100A
- Continuous Discharge Current: 100A
- Over-Voltage Protection: 3.8V
- Charge Current: 50A
- Charge Voltage: 58.4V
- Model No.(498f)
-
![Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)]()
Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)
Rs. 7579.00Specification:-
- Cell specifications: 8~24 strings of LiFePO4 battery
- Interface type: Charge and discharge are both at the same port
- Charging voltage: 3.60V*Number of strings
- Cell voltage range: 2.20~3.75V
- Continuous charging current: 200A
- Continuous discharging current: 200A
- Consumption of running: ≤20mA
- Operating temperature: -20°C~75°C
- Model No.(494a)
-
![4S 2A Lithium Battery Balance Board]()
4S 2A Lithium Battery Balance Board
Rs. 269.00Specification:-
- Software active equalization
- Number of battery pack strings - 4S
- Balance current ≤2A
- Balance mode - Active equilibrium
- working temperature -20°C~60°C
- Model no. (7421)
-
![15S 200A BMS LFP Hardware Waterproof]()
15S 200A BMS LFP Hardware Waterproof
Rs. 9979.00Specification:-
- Battery Configuration: 15S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 200A
- Over-Voltage Protection: 3.8V
- Balancing Current: 50mA
- Charge Voltage: 54.75V
- Model no. (1637)
-
![8S 60A BMS LFP Hardware Waterproof]()
8S 60A BMS LFP Hardware Waterproof
Rs. 1439.00Specification:-
- Battery Configuration: 8S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 60A
- Over-Voltage Protection: 3.8V
- Balancing Current: 50mA
- Charge Voltage: 29.2V
- Model no. (11d6)
-
![3S 50A BMS NMC Hardware Waterproof]()
3S 50A BMS NMC Hardware Waterproof
Rs. 1209.00Specification:-
- Continuous Discharge Current: 50A
- Over-Voltage Protection: 4.12V
- Charge Current: 25A
- Charge Voltage: 12.6V
- Battery Configuration: 3S for NMC (Nickel Manganese Cobalt) Lithium-Ion
- Model no. (46cd)
-
![8S 50A BMS LFP Hardware Waterproof]()
8S 50A BMS LFP Hardware Waterproof
Rs. 1379.00Specification:-
- Battery Configuration: 8S for LiFePO4 (LFP) batteries
- Continuous Discharge Current: 40A
- Over-Voltage Protection: 3.8V
- Balancing Current: 50mA
- Charge Voltage: 29.2V
- Model no. (10e5)
-

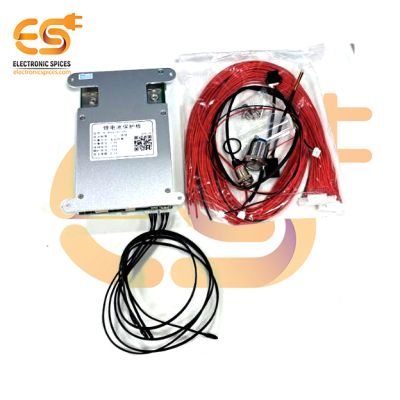

![Smart LiFePO4 8-24S 100A BMS (BD6A24S6PY)]()
Smart LiFePO4 8-24S 100A BMS (BD6A24S6PY)
Rs. 5089.00Specification:-
- Number of Battery Strings (Lifepo4): 8S-24S
- Balance Current: 0.6A
- Continuous charging current: 100A
- Continuous discharging current: 100A
- Voltage Acquisition Accuracy: ±5 mV
- Single Cell Voltage Range: 1.5V
- Model No.(7af9)
-
![Smart BMS LiFePO4 23S 72V 50A Common Port with Balance]()
Smart BMS LiFePO4 23S 72V 50A Common Port with Balance
Rs. 5609.00Specification:-
- Battery Configuration: Smart BMS LiFePO4 23S 72V 50A
- Continuous Discharge Current: 50A
- Over-Voltage Protection: 3.8V
- Charge Current: 25A
- Charge Voltage: 83.95V
- Model no. (46ca)
-
![Smart BMS LiFePO4 16S 48V 80A Common Port with Balance]()
Smart BMS LiFePO4 16S 48V 80A Common Port with Balance
Rs. 6159.00Specification:-
- Battery Configuration: Smart BMS LiFePO4 16S 48V 80A
- Continuous Discharge Current: 80A
- Over-Voltage Protection: 3.8V
- Charge Current: 40A
- Charge Voltage: 58.4V
- Model no. (219b)
