BMS (Battery Management System)

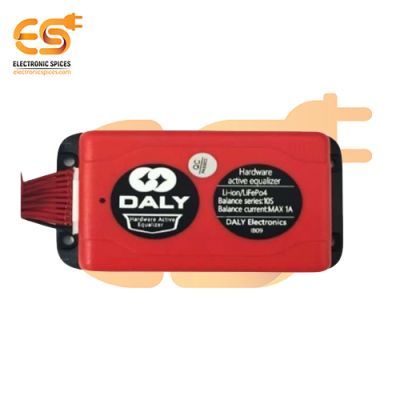

10S 1A Li-Ion/LiFePO4 Hardware Active Balancer

Specification:-

• Software active equalization
• Number of battery pack strings - 10S
• Balance current ≤1A
• Balance mode - Active equilibrium
• working temperature -20°C~60°C
• Model no. (48ec)

Smart NMC BMS Li-ion 13S 48V 50A Common port with Balance

Specification:-

• Battery Configuration: Smart BMS LiFePO4 13S 48V 50A
• Continuous Discharge Current: 50A
• Balance detect Voltage 3.8
• Charge Current: 25A
• Charge Voltage: 54.6V
• Model no. (46c4)

Smart BMS Li-ion 16S 60V 40A Common Port with Balance

Specification:-

• Battery Configuration: Smart BMS LiFePO4 16S 60V 40A
• Continuous Discharge Current: 40A
• Balance detect Voltage 3.8
• Charge Current: 20A
• Charge Voltage: 67.2V
• Model no. (1659)

Smart 20S 1A Li-Ion/LiFePO4 Software Active Balancer

Specification:-

• Software active equalization
• Number of battery pack strings - 20S
• Balance current ≤1A
• Balance mode - Active equilibrium
• Working temperature: -20°C~60°C
• Model no. (48f9)

Smart BMS 8-24S 200A Same Port for Charge and Discharge (SP24S004)

Specification:-

• Cell specifications: 8~24 strings of LiFePO4 battery
• Interface type: Charge and discharge are both at the same port
• Charging voltage: 3.60V*Number of strings
• Cell voltage range: 2.20~3.75V
• Continuous charging current: 200A
• Continuous discharging current: 200A
• Consumption of running: ≤20mA
• Operating temperature: -20°C~75°C
• Model No.(494a)

4S 80A BMS LFP Hardware Waterproof

Specification:-

• Battery Configuration: 4S for LiFePO4 (LFP) batteries
• Continuous Discharge Current: 80A
• Continuous Charge Current: 40A
• Over-Voltage Protection: 3.75±0.05V
• Balancing Current: 30±5mA
• Charge Voltage: 14.6V
• Working Temp: -20~70 °C
• Working current: 500 uA
• Model no. (1199)

4S 10A 16.8V 18650 Li-ion Lithium battery protection and charger BMS module pack of 5pcs

Specification:-

1. Brand new and reliable product
2. Charging voltage: DC 16.8V
3. Current consumption: 10A
4. Overcharge detection voltage: 3.90V±0.25V
5. Overcharge release voltage: 2V to 3V±0.05V
6. Over discharge detection voltage range: 2.0±0.08V
7. Over discharge release voltage: 32.5±0.1V
8. Low current consumption.
9. Stable performance.

Smart BMS LiFePO4 19S 60V 40A Common Port with Balance

Specification:-

• Battery Configuration: Smart BMS LiFePO4 19S 60V 40A
• Continuous Discharge Current: 40A
• Over-Voltage Protection: 3.8V
• Charge Current: 20A
• Charge Voltage: 69.35V
• Model no. (219d)

Smart BMS 10-14S 20A Same Port for Charge and Discharge (SP14S004)

Specification:-

• Cell specifications: 10~14 strings of LiFePO4 battery
• Interface type: Charge and discharge are both at the same port
• Charging voltage: 3.60V*Number of strings
• Cell voltage range: 2.20~3.75V
• Continuous charging current: 20A
• Continuous discharging current: 20A
• Consumption of running: ≤10mA
• Operating temperature: -20°C~75°C
• Model No.(7d41)

4-8S 60A Smart Active Balance Li-Ion-LiFePO4 BMS (R24TK1A)

Specification:-

• Model Number: R24TK1A (7637)
• Cell sampling voltage range: 1.5V-4.9V
• Operating voltage range: >10V
• Balance method: Active Balance
• Working power consumption: ≤1.25W
• working temperature -40°C~85°C

Smart BMS (Parallel) LiFePO4 16S 48V 100A Common Port with Balance

Specification:-

• Battery Configuration: Smart BMS LiFePO4 16S 48V 100A
• Continuous Discharge Current: 100A
• Over-Voltage Protection: 3.8V
• Charge Current: 50A
• Charge Voltage: 58.4V
• Model No.(498f)

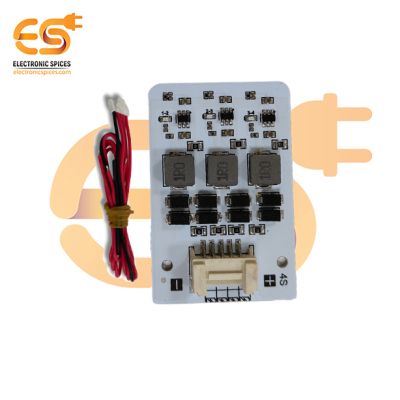

4S 5A Lithium Battery Balance Board

Specification:-

• Software active equalization
• Number of battery pack strings: 4S
• Balance current ≤5A
• Balance mode - Active equilibrium
• working temperature: -20°C~60°C
• Model no. (5420)
