CONNECTORS

HM-LT-13 Terminal Block Splice 250V/32A Quick Connector

Specification:-

• Model: HM-LT-13
• Rated voltage: 250V
• Rated current: 32A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm

LT-33 Terminal Block 250V/24A Quick Connector

Specification:-

• Model: LT-33
• Rated voltage: 250V
• Rated current: 24A
• Strip length: 11-12mm
• Wire diameter: 0.5-2.5mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃

HM-LT-624 Terminal Block Connector 450V/35A with Push-on-Clamp

Specification:-

• Model: HM-LT-624
• Rated voltage: 450V
• Rated current: 35A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 12-14mm

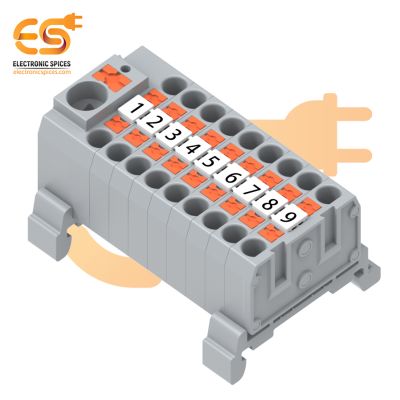

LT-PTF6x2.5 24-pole Multi-in and Multi-out 450V/50A Rail Terminal Connector

Specification:-

• Model: LT-PTF6x2.5
• Rated voltage: 450V
• Rated current: 50A
• Wire diameter: 0.5-6mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 24P

3x9-Wire LT-639 Transparent 450V/35A Terminal Block Connector with Push-on-Clamp

Specification:-

• Model: LT-639
• Rated voltage: 450V
• Rated current: 35A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 12-14mm
• wires 3x9 (red, yellow, blue)
• Color: Transparent

SD20 9-pin Docking Waterproof Male & Female Aviation Connector

Specification:-

• Connector type: SD20
• Current Rating: 5A
• Voltage Rating: 250V AC
• Number of Pins: 9-Pin
• Protection Degree: IP68
• Docking Diameter: 20mm
• Cable Insert Diameter: 11mm

SD20 7-pin Docking Waterproof Male & Female Aviation Connector

Specification:-

• Connector type: SD20
• Current Rating: 10A
• Voltage Rating: 250V AC
• Number of Pins: 7-Pin
• Protection Degree: IP68
• Docking Diameter: 20mm
• Cable Insert Diameter: 11mm

HM-LT-06F Quick Connection 450V/40A Terminal Block Wire Connector

Specification:-

• Model: HM-LT-06F
• Rated voltage: 450V
• Rated current: 40A
• Wire diameter: 1-6mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm

LT-2604D-3 Terminal Block Splice 250V/32A Quick Connector

Specification:-

• Model: LT-2604D-3
• Rated voltage: 250V
• Rated current: 32A
• Wire diameter: 0.2-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 3-P

HM-LT-639 Terminal Block Connector 450V/35A with Push-on-Clamp

Specification:-

• Model: HM-LT-639
• Rated voltage: 450V
• Rated current: 35A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 12-14mm

Mono 6.35mm male to 3.5mm female Golden color audio connector pack of 2pcs

Specification

1. 100% branded and new product
2. Mono plug 6.35mm male to 3.5mm female golden color plating
3. Contact material  :  high quality copper
4. Prevent data fluctuation
5. High carbon steel body with silver plating
6. Hard plastic insulation on top and inside

SD20 4-pin Docking Waterproof Male & Female Aviation Connector

Specification:-

• Connector type: SD20
• Current Rating: 5A
• Voltage Rating: 250VAC
• Number of Pins: 4-Pin
• Protection: IP68
