Specification
- Rating Voltage = 16V
- Material = Aluminum
- Capacitor Size = 10 x 20 mm
- Impedance (O)max. 20°C 1000KHz = 42
- Ripple current = 1050
- DC Leakage Current = ≤ 0.01CV (µF) at 20°C
- Capacitance Tolerance = ±20%(M)
- Shelf Life = After storage for 1000Hrs at +105°C with no voltage applied, the capacitor shell meet the specified limits for “Load Life”.
SKU: XD8532E

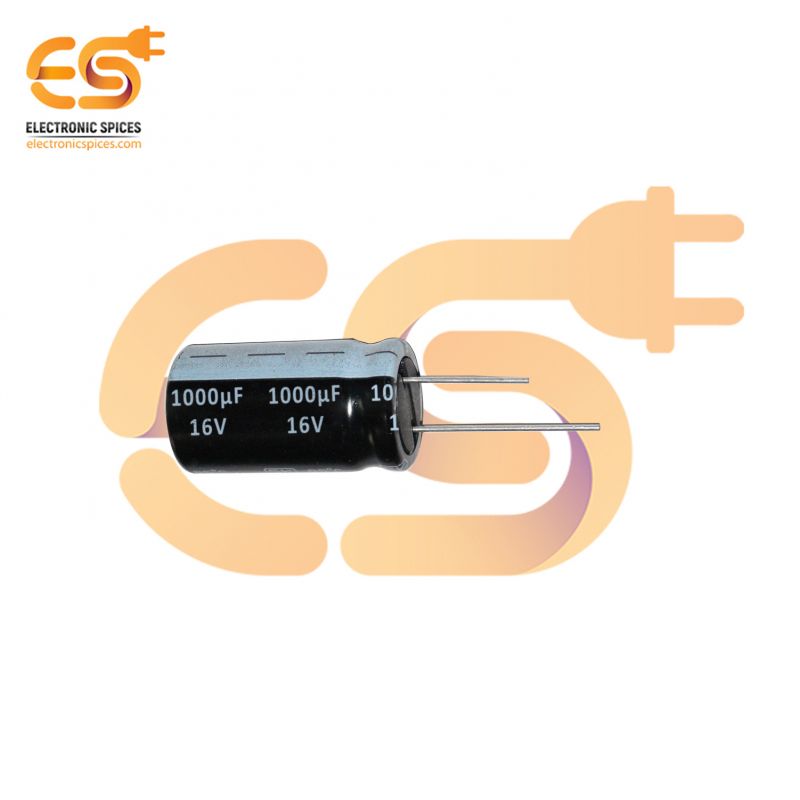

1000uf 16V Aluminum Electrolytic Capacitors (10 X 20 mm) pack of 5pcs
The surface area of the aluminum anode foil determines the capacitance of aluminum electrolytic capacitors. These capacitors offer an appealing cost-per-capacitance ratio and the highest volumetric capacitance of any capacitor technology thanks to the specialized etching techniques used to maximize this surface. EPCOS aluminum electrolytic capacitors stand out for their remarkable ripple current capability and long-term dependability. In the automotive industry, frequency converters, wind power converters, solar inverters, professional power supplies, and professional photoflash units are just a few of the many applications for aluminum electrolytic capacitors. For the vast majority of applications, they are a genuinely reliable and affordable choice.
Features:
- Wide Temperature Range
- Extremely Low Impedance
- High Reliability
- Load Life = 105°C, 2000Hrs
- Excellent ripple current ability and low impedance
- Best Quality Product
