Specification:-
- Model: 15-22R6B6C-A32/2T
- Color: Blue, Red
- Package Type: Surface Mount Device (SMD)
- Forward Voltage: 2.0/3.3 V
- Forward Current: 20 mA
- Maximum Forward Voltage: 2.4/3.7 V
- Maximum Forward Current: 25 mA
- Min-Max Operating Temperature: -40C to +85C
SKU: UT8539A

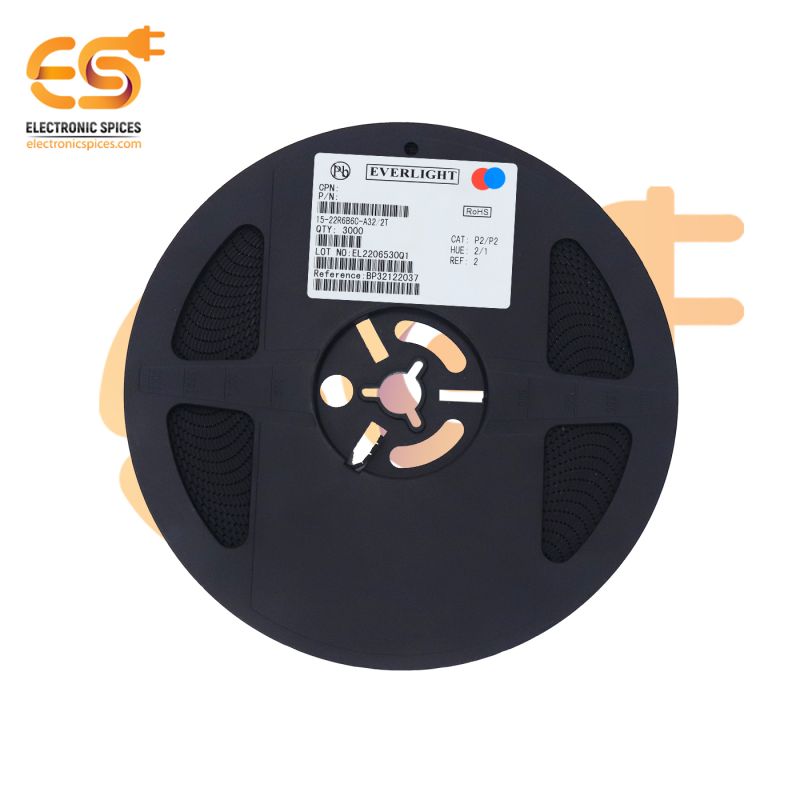

15-22R6B6C-A32/2T 1206 SMD 2V Red & 3.3V Blue LED Pack of 3000
The 15-22R6B6C-A32/2T SMD 2V Red & 3.3V Blue LED is a compact, dual-colour surface-mount device for versatile indicator applications. This LED features two distinct emission colours, red and blue, operating at 2V for the red light and 3.3V for the blue light. The dual-color functionality makes it ideal for multi-status indicators where different colours can signal different operating states. With a compact SMD (surface Mount Device) design, this LED is optimized for space-saving applications in modern electronics, making it perfect for circuit boards with limited real estate. Its red light typically emits a wavelength of 620–630 nm, while the blue light operates around 460-470nm, providing high-contrast color differentiation. The device is also energy efficient, with low power consumption that helps extend battery life in portable devices.
Features :-
- Dual Color Emission
- Compact SMD Package
- Low Heat Generation
- Low Operating Voltage
- Automated Assembly Compatibility
