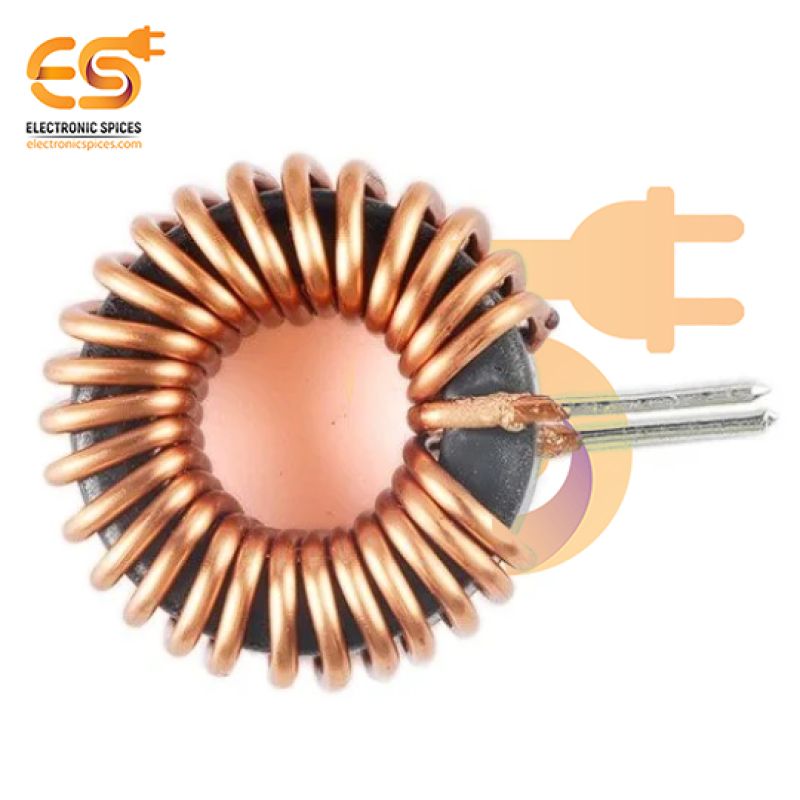

22μH 15A Ferrite Magnetic Inductor Coil 1.2mm Wire dia (20x10mm)

22μH 15A Ferrite Magnetic Inductor Coil 1.2mm Wire dia (20x10mm)

The 22μH 15A Ferrite Magnetic Inductor Coil (20x10mm) is a high-performance inductor designed for applications requiring both high inductance and the ability to handle significant current. With an inductance of 22μH and a current rating of up to 15A, this inductor is ideal for use in power circuits such as DC-DC converters, switching power supplies, and power filters. Its ferrite core provides excellent magnetic characteristics, minimizing energy loss and improving efficiency even at higher frequencies. The coil is wound with a 1.2mm thick copper wire, which allows it to handle higher currents with minimal power dissipation and low resistance. The larger wire diameter, combined with the inductor's compact 20mm diameter and 10mm height, ensures efficient energy transfer while reducing the potential for overheating in high-current applications. The ferrite core helps to significantly reduce electromagnetic interference (EMI), making this inductor particularly suitable for applications where signal integrity is crucial, such as audio equipment, communication systems, and RF circuits. Its low DC resistance (DCR) also ensures minimal power loss, enhancing overall circuit efficiency.

Features:-

• Compact Design
• Suitable for AC-DC converters
• Long-lasting performance
• Toroidal shape minimizes electromagnetic interference (EMI)
• Provides excellent magnetic permeability and low core loss
