24C1024 1M bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Specification:-
- Low-voltage Operation – 2.7 (VCC = 2.7V to 5.5V)
- Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V
- Storage temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
- 400 kHz (2.7V) and 1 MHz (5V) Clock Rate
- 256-byte Page Write Mode (Partial Page Writes Allowed)
SKU: RC8542A

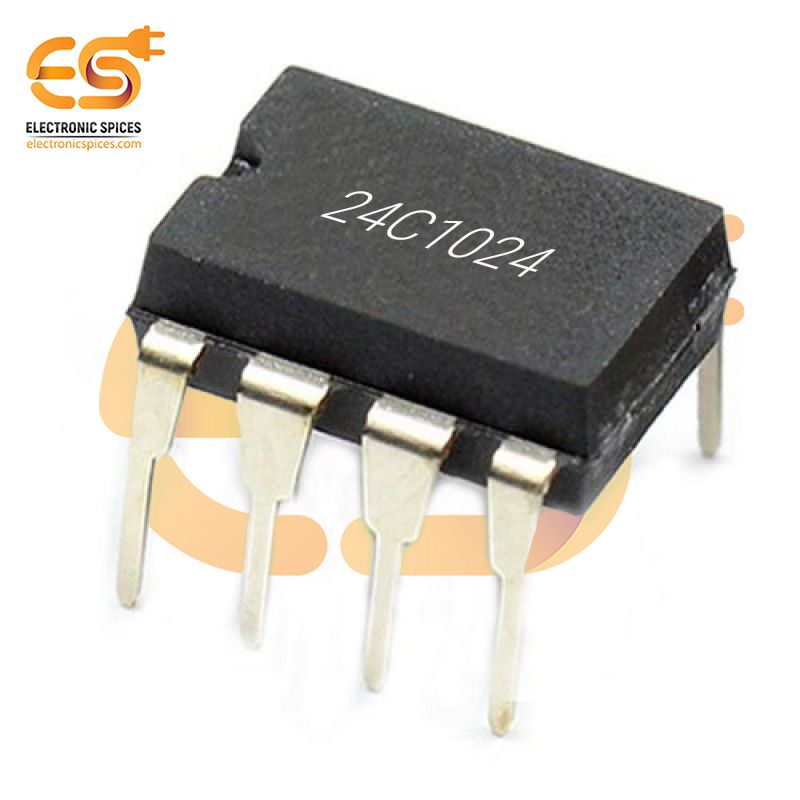

24C1024 1M bit Serial I2C Bus EEPROM IC (DIP-8 Package)
The 24C1024 is a 1M-bit (128KB) Serial EEPROM (Electrically Erasable Programmable Read-Only Memory) IC that utilizes the I2C (Inter-Integrated Circuit) communication protocol, housed in a compact DIP-8 package. This memory device provides reliable, non-volatile storage for small amounts of data, such as configuration settings, calibration parameters, or user data logs, making it ideal for embedded systems and low-power applications. The 24C1024 features a flexible memory organization, allowing the user to access and store data in 8-bit (byte) or 32-byte pages, facilitating efficient data management. Operating over a wide voltage range of 2.5V to 5.5V, the 24C1024 is highly compatible with various microcontrollers and digital systems. It supports standard I2C communication speeds up to 400kHz in fast mode, ensuring quick read and write operations. The EEPROM offers high durability, with over 1 million write/erase cycles and a data retention period of up to 100 years, making it suitable for long-term storage in applications that require frequent updates.
Features:-
- Wide Operating Voltage
- Low-Power Modes
- Bi-directional Data Transfer Protocol
- Schmitt Triggers, Filtered Inputs for Noise Suppression
