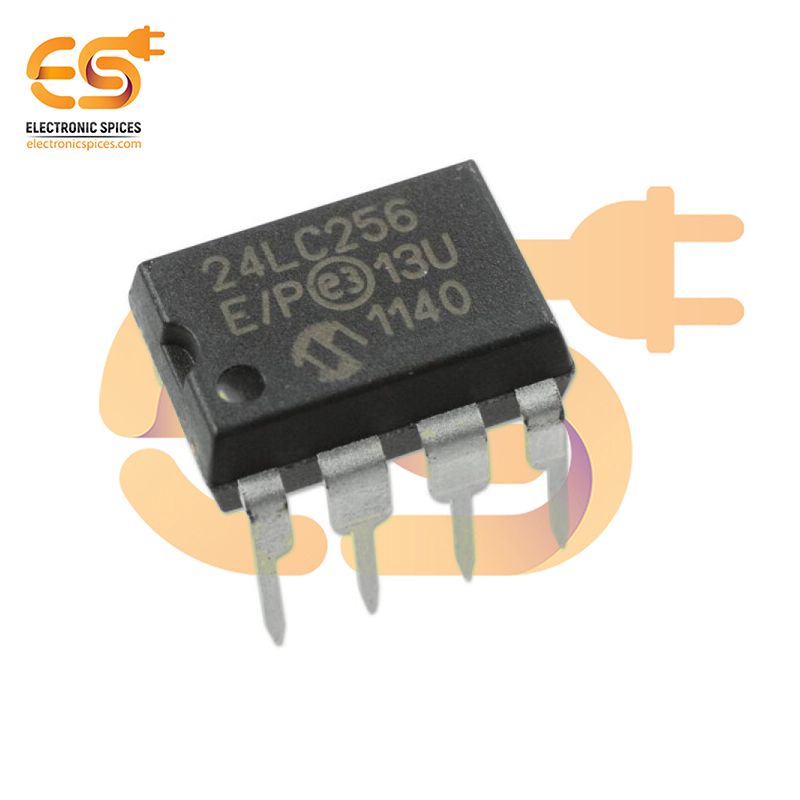

24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Specification:-
- Single Supply with Operation Down to 2.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VCC +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temperature with power applied: -40°C to +125°C
- ESD protection on all pins: ≥ 4 kV°C
- 100 kHz, 400 kHz and 1 MHz Compatibility
SKU: UA8542A
24LC256 256K bit Serial I2C Bus EEPROM IC (DIP-8 Package)
The 24LC256 is a 256K-bit (32KB) serial EEPROM IC that uses the I2C (Inter-Integrated Circuit) communication protocol, designed to provide reliable, non-volatile data storage. Encased in a standard DIP-8 package, this IC is suitable for applications requiring low-power, compact, and efficient memory solutions for storing configuration data, calibration settings, or small data logs. With a memory organization of 32,768 words x 8 bits, the 24LC256 supports both single-byte and page write operations, allowing up to 64 bytes to be written in one cycle. It operates on a wide voltage range of 2.5V to 5.5V, making it compatible with various microcontroller systems. The device supports I2C clock frequencies up to 400 kHz (fast mode), enabling quick and efficient data transfers. The 24LC256 features excellent endurance, offering 1 million write/erase cycles and retaining data for up to 100 years, ensuring high reliability and durability. Its low power consumption during both active and standby modes makes it an ideal choice for battery-powered devices and energy-efficient systems.
Features:-
- Wide Operating Voltage
- Low-Power Modes
- Factory Programming Available
- Schmitt Trigger Inputs for Noise Suppression
