Specification:-
- Power Source: AC
- Voltage Rating: 100V
- Capacitance: 10000uf
- Tolerance: ±20%
- PCB size: 128mm x 100mm (approx)
SKU: EO8483A

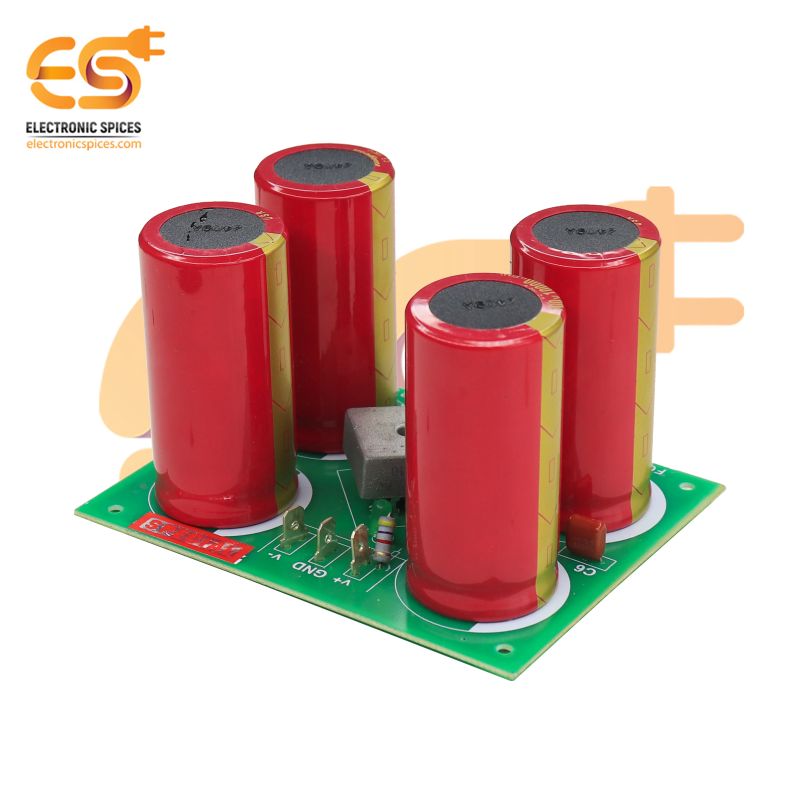

4 Capacitor AC-DC Power Supply with Heavy Diode (10000uf/100V)
The 4 Capacitor AC-DC Power Supply with Heavy Diode (10,000µF/100V) is a robust power conversion system designed to transform alternating current (AC) into direct current (DC) for high-power applications. It consists of a bridge rectifier configuration, using heavy-duty diodes that handle high currents and reverse voltage, ensuring reliable and efficient rectification. The 10,000µF/100V capacitors are used to smooth out the rectified DC voltage, reducing ripple and stabilizing the output. These capacitors are particularly large to handle higher power requirements, providing a more consistent and cleaner DC output. The 100V rating ensures that the capacitors can withstand higher voltages and maintain operational stability under varying electrical conditions. This power supply design is commonly employed in applications that require high-capacity energy storage and reliable voltage regulation, such as industrial machinery, audio equipment, and motor control systems. The four capacitors work in tandem to filter the voltage, providing better performance under load and ensuring reduced fluctuation in the DC voltage. The heavy diodes play a key role in ensuring fast recovery times, enabling the circuit to handle surge currents efficiently. This power supply system is known for its durability, efficiency, and ability to provide stable power output, even in demanding environments with high-power or continuous load conditions.
Applications:-
- Audio amplifiers (high-power audio equipment)
- Industrial machinery (for powering heavy loads)
- Motor control systems
- Powering large-scale electronics
