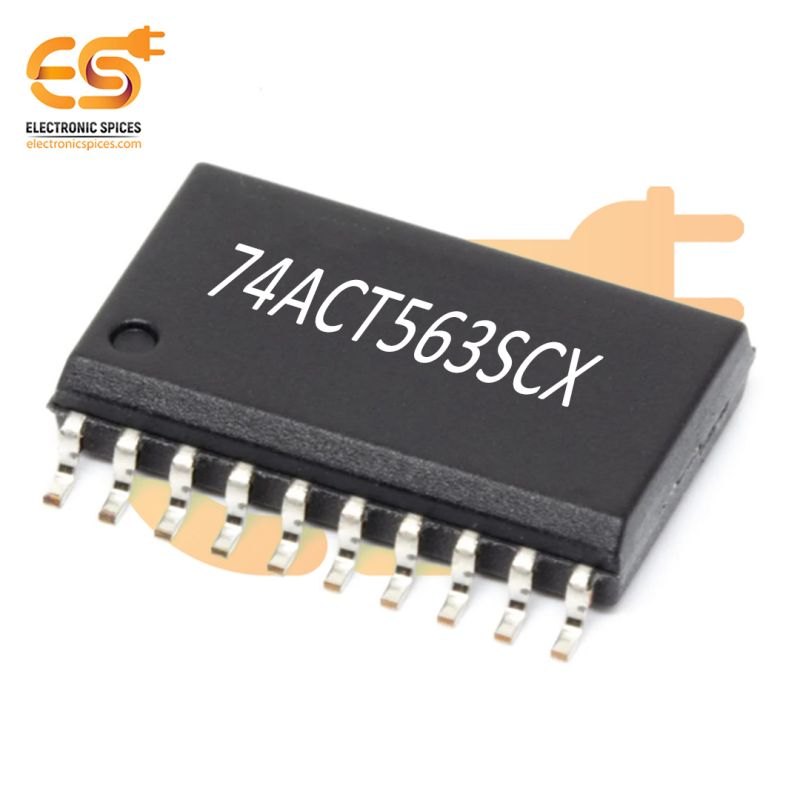

74ACT563SCX D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SOIC

Specification:-

  • Package: SOIC20 (0.295", 7.50mm)
  • Polarity: Inverting
  • Propagation Delay Time: 11.5 ns at 5 V
  • High Level Output Current: 24 mA
  • Supply Voltage - Min: 4.75 V
  • Supply Voltage - Max: 5.25 V
Available in Pack Of:

SKU: IR8517A

MRP Rs. 745.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74ACT563SCX D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SOIC

The 74ACT563SCX is an 8-bit D-type transparent latch with tri-state outputs, housed in a 20-SOIC package. This logic IC is designed to store and latch 8-bit data in a transparent manner, meaning that when the latch enable (LE) pin is high, the data present at the data inputs (D) is passed directly to the outputs. When LE is low, the data is latched, and the outputs retain the last state until the latch is re-enabled. This feature makes the IC useful for temporary storage of data in digital circuits. The 74ACT563SCX is part of the ACT (Advanced CMOS TTL) logic family, known for its high-speed operation and low power consumption compared to standard TTL logic. The device provides tri-state outputs, allowing multiple devices to share the same data bus without interference, making it ideal for bus-oriented applications. The IC is designed to operate at a 5V supply voltage and supports TTL-compatible logic levels, ensuring compatibility with a wide range of digital systems. This IC is widely used in applications requiring data buffering, memory storage, and signal routing, such as microprocessor interfaces, bus systems, and logic data flow control, where temporary storage or state retention is necessary. The 20-PDIP package offers ease of mounting and robust connections for industrial and consumer electronics.

Features:-

  • 8-bit Data Latch
  • Tri-State Outputs
  • High-Speed Operation
  • Wide Voltage Range
