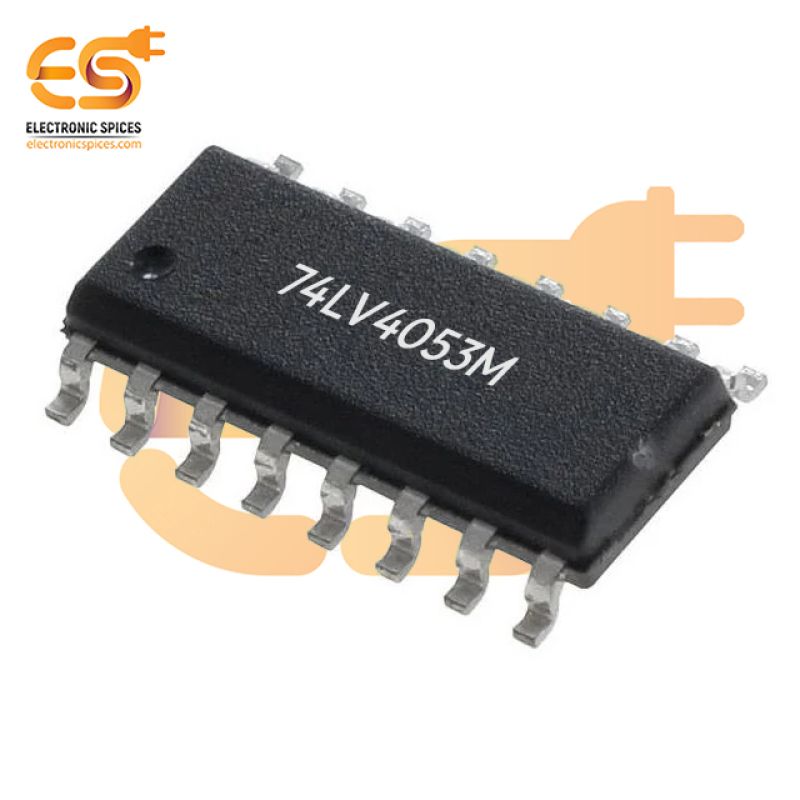

74LV4053M Interface 3 Circuit Switch IC 2:1 105 Ohm 16-TSSOP

74LV4053M Interface 3 Circuit Switch IC 2:1 105 Ohm 16-TSSOP

The 74LV4053M is a 3-channel analog switch IC designed to route or multiplex signals between different circuit paths. It offers a 2:1 multiplexer/demultiplexer configuration, meaning it can switch between two input channels for each of its three channels. This makes it useful for applications such as signal routing, data switching, and analog signal management, especially in systems that require high-speed or low-resistance switching. This IC operates within a voltage range of 2V to 5.5V, making it ideal for interfacing with TTL and CMOS logic systems, ensuring compatibility with a variety of digital logic circuits. It features low on-resistance (typically 105Ω), ensuring minimal signal degradation and power loss during the switching process, making it suitable for high-performance signal applications where maintaining signal integrity is critical. The 74LV4053M comes in a 16-TSSOP (Thin Shrink Small Outline Package) form factor, which is a compact surface-mount package ideal for space-constrained designs. This makes it an excellent choice for modern, high-density printed circuit boards (PCBs) and devices requiring small, lightweight components.

Features:-

• Very fast response time
• Low incremental surge resistance
• They are very lightweight and tough
• Excellent clamping capability
