Specification:-
- Package: SOIC16 (0.154", 3.90mm)
- Number of Bits: 4 bit
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- Supply Voltage - Min: 2 V
- Supply Voltage - Max: 5.5 V
- Propagation Delay Time: 13.2 ns at 3.3 V, 8.4 ns at 5 V
SKU: KP8517A

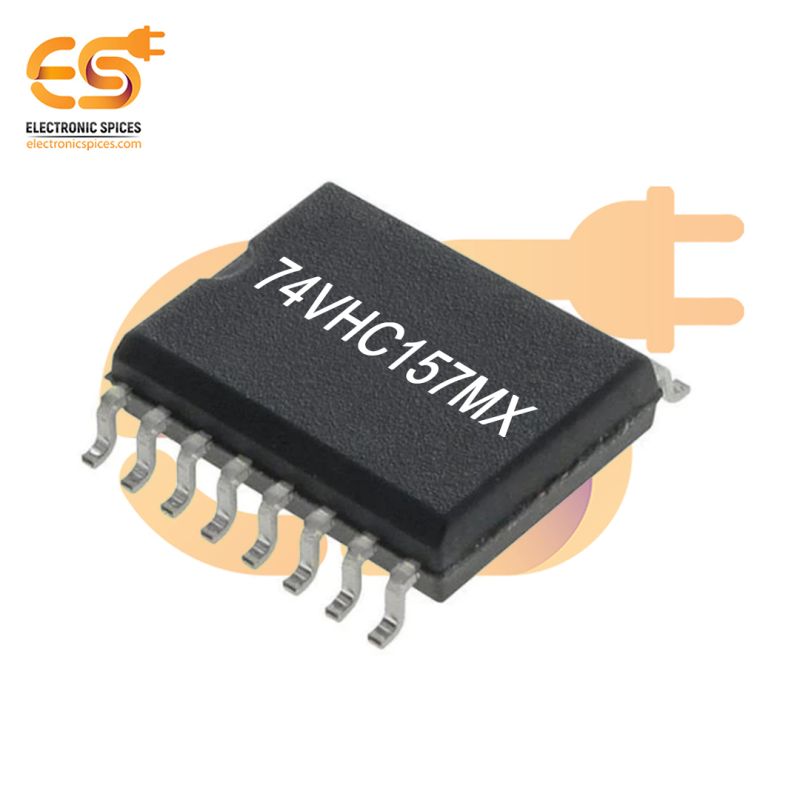

74VHC157MX Logic IC Multiplexer 4 x 2:1 16-SOIC
The 74VHC157MX is a high-speed 4 x 2:1 multiplexer logic IC, designed for efficient data selection and routing in digital systems. Each of its four multiplexing channels allows the user to select one of two input signals, determined by a common select line, and pass it to the corresponding output. This functionality is critical in applications requiring seamless data switching or signal routing. Built using VHC (Very High-Speed CMOS) technology, the IC provides low power consumption and high-speed operation, making it suitable for modern digital systems requiring fast signal processing. The device is housed in a 16-SOIC (Small Outline Integrated Circuit) package, ideal for surface-mount technology (SMT) applications, which ensures a compact and efficient layout on printed circuit boards (PCBs). The 74VHC157MX supports a wide operating voltage range, ensuring compatibility with various logic families and systems. Its typical use cases include microprocessor interfaces, data selection in multiplexed systems, and communication circuits where rapid and precise signal routing is essential. With excellent noise immunity and low propagation delays, this IC is a reliable solution for high-performance digital designs. Its compact design and robust functionality make it ideal for use in consumer electronics, telecommunications, and industrial applications.
Feature :-
- Fast Switching
- Reliable Performance
- Low Power Consumption
- Compact 16-SOIC Package
