Specification:-
- Part No: ADG3245BRUZ
- Package: TSSOP 20 (0.173", 4.40mm)
- Mounting Type: Surface Mount
- No. of Pins: 20Pins
- Supply Voltage - Max: 3.6 V
- Supply Voltage - Min: 2.3 V
- Output Current: 25mA
- Operating Temperature: - 40°C to +85°C
- Logic Type: Level Translator Bus Switch
SKU: TO2105B1

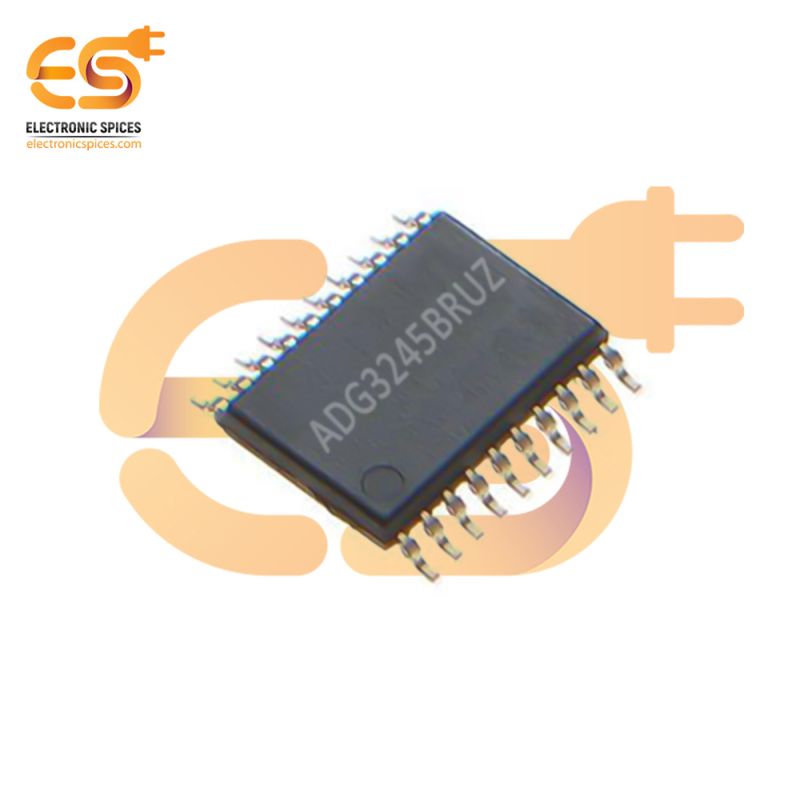

ADG3245BRUZ SMD Switch IC (Package 20-TSSOP)
The ADG3245BRUZ is a specialized Surface-Mount Device (SMD) switch integrated circuit (IC) designed for high-performance digital signal switching and level translation. Packaged in a compact 20-TSSOP (Thin Shrink Small Outline Package), this IC is ideal for applications requiring minimal space and high efficiency. The 20-TSSOP package ensures the IC is easy to integrate into designs requiring surface-mount technology, providing a reliable and space-saving solution for circuit boards.The ADG3245BRUZ is an 8-bit, 2-port bus switch that features low ON-resistance and fast switching times, making it suitable for a wide range of digital applications, including communication systems, data acquisition, and signal routing in high-speed digital circuits. The device operates on a single 1.65V to 3.6V power supply, allowing it to interface with a variety of logic levels, making it versatile for mixed-voltage environments.
Applications:-
- Level Translation
- Industrial Control Systems
- Digital Video and Audio Switching
- Due to its low power consumption and compact size
Features:-
- Low ON-Resistance
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact 20-TSSOP Package
