Specification:-
- Package: SOIC-16 (0.295", 7.50mm)
- No. of Pins: 16
- Mounting Style: SMD/SMT
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.75 V
- Supply Voltage-Nom (Vsup): 5 V
- Operating Temperature: -40°C to 85°C
SKU: AT8477B1

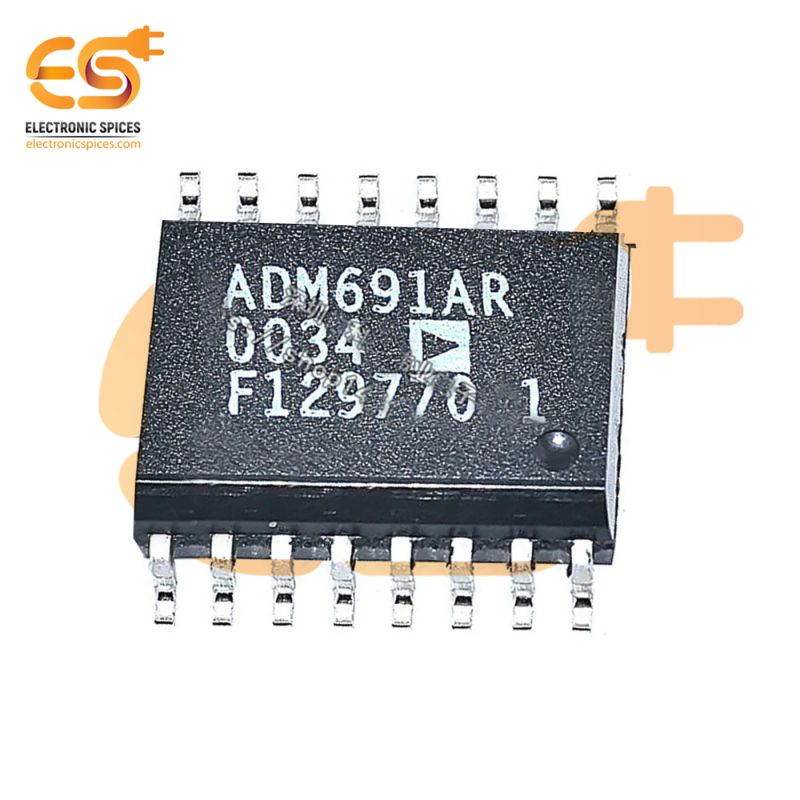

ADM691AR Supervisor SMD IC 1-Channel 16-SOIC
The ADM691AR is a highly reliable supervisor IC designed to oversee and manage microprocessor and digital system operations. Encased in a 16-pin SOIC (Small Outline Integrated Circuit) package, this surface-mount device is tailored for applications requiring efficient space utilization and robust performance. This supervisor IC offers critical functions such as power supply monitoring, watchdog timer, and battery backup switching. The ADM691AR continuously monitors the voltage levels of the power supply. If the supply voltage dips below a preset threshold, the IC generates a reset signal to prevent the microprocessor from operating under unstable conditions. This feature ensures the safe and reliable operation of microprocessor-based systems. The integrated watchdog timer is another key feature of the ADM691AR. It monitors the microprocessor's activity and triggers a system reset if the microprocessor fails to reset the timer within a specified period.
Applications:-
- Microprocessor-Based Systems
- Industrial Automation
- Embedded Systems
- Battery-Powered Devices
Features:-
- Power Supply Monitoring
- Low Power Consumption
- Battery Backup Switching
- Compact and suitable for space-constrained applications.
