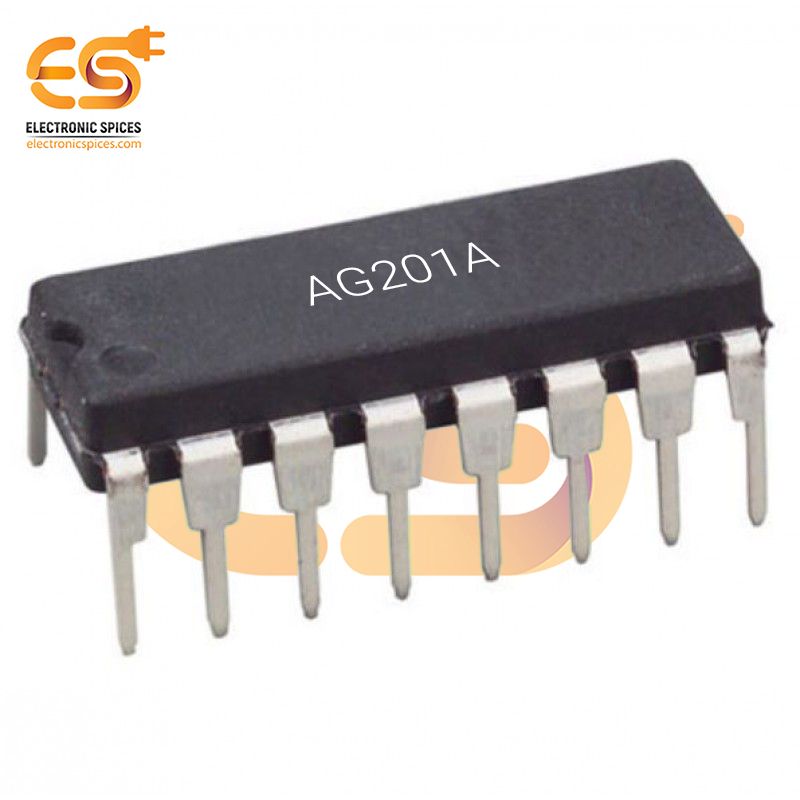

AG201A Quad SPST Switch IC
Specification:-
- Supply Voltage: ±18 V
- Internal Power Dissipation: 500 mW
- Output Short-Circuit Duration: Indefinite
- Differential Input Voltage: ±16.5 V
- Lead Temperature: 300°C
- Storage Temperature Range: −65°C to +125°C
- Logic Supply Voltage: 7V
SKU: TB8501A
AG201A Quad SPST Switch IC
The AG201A is a Quad Single-Pole Single-Throw (SPST) switch IC designed for efficient analog and digital signal switching in a variety of applications. This IC features four independent SPST switches, each capable of handling signal routing with minimal power consumption and excellent switching performance. Its CMOS architecture ensures that it operates with low power, making it ideal for energy-efficient systems and battery-operated devices. The AG201A is designed with low on-resistance (Rds(on)), which ensures that the signal integrity is preserved even when the switch is in the “on” state, making it suitable for high-fidelity audio or high-frequency signal applications. The device operates over a wide voltage range, typically from 3V to 12V, providing flexibility for use in different electronic circuits. Its compact surface-mount package (SMD) makes it well-suited for space-constrained designs and simplifies integration into modern PCBs. The IC also ensures low crosstalk and high channel isolation, minimizing interference between channels, which is essential for high-precision applications.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Low Power Dissipation (33mW)
- Available in 16-Lead DIP
