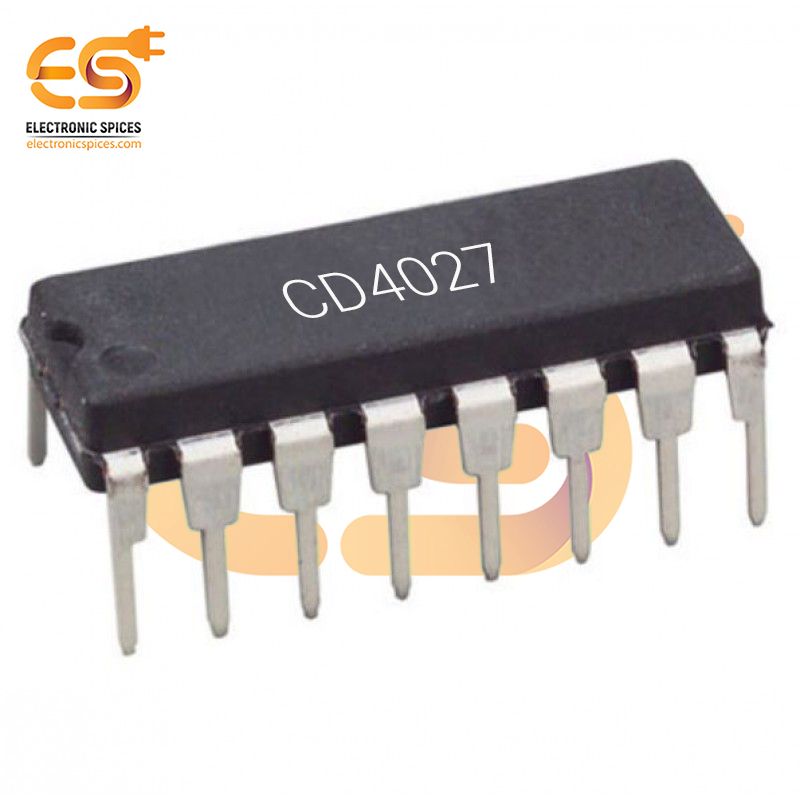

CD4027 Dual JK Flip Flop IC (DIP-16 Package)
Specification:-
- Supply Voltage: 3V to +18V
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V
- Temperature range; 100 nA at 18 V and 25°C
SKU: YQ8543A
CD4027 Dual JK Flip Flop IC (DIP-16 Package)
The CD4027 is a Dual JK Flip Flop IC housed in a DIP-16 package, designed for use in a variety of digital applications where memory storage, toggling, or timing functions are required. Each flip flop within the CD4027 operates independently and can be configured as a latch, T-type, or JK flip flop, providing versatility for use in counters, shift registers, and control circuits. Each JK flip flop has standard inputs for J, K, clock (CLK), set (SET), and reset (RESET), as well as complementary outputs (Q and ????Q ). The IC functions by changing its state on the rising or falling edge of the clock signal, depending on the specific configuration. The behavior of the outputs is determined by the J and K input states: setting both inputs to HIGH results in the toggling of the output state with each clock pulse, while other input combinations provide different stable or reset states. The CD4027 can operate across a broad voltage range of 3V to 15V, making it compatible with various CMOS and TTL logic levels. It is known for its low power consumption and high noise immunity, ensuring reliable operation in digital circuits.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Standardized, symmetrical output characteristics
- 100% tested for quiescent current at 20 V
