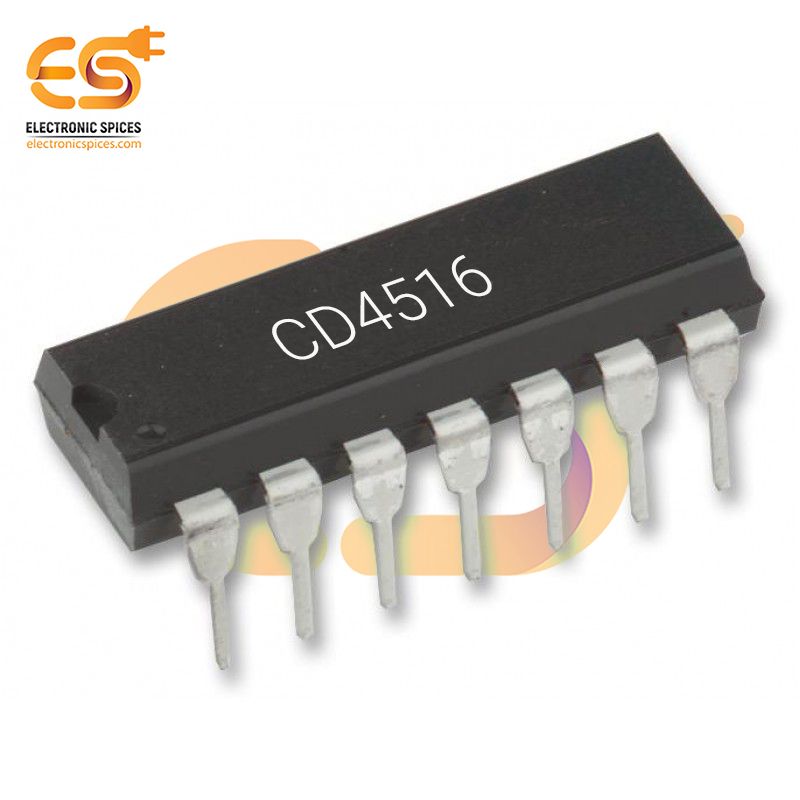

CD4516 Binary Up Down Counter DIP IC
Specification:-
- Medium-speed operation – fCL = 8 NHz typ. at 10 V.
- 5-V, 10-V, and 15-V parametric ratings
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V
- Temperature Range; 100nA at 18V and +25°C
SKU: MB8543A
CD4516 Binary Up Down Counter DIP IC
The CD4516 is a 4-bit synchronous binary up/down counter IC in a DIP-16 package, designed for counting applications in digital systems. This versatile IC can count upwards and downwards, making it suitable for applications requiring bidirectional counting, such as digital clocks, frequency counters, and timers. The CD4516 features a four-stage binary counter with four outputs (Q1 to Q4) representing the counter state in binary form. The IC has control inputs for the count mode (up or down), reset (clear), and clock signals. The synchronous operation ensures that all bits change state simultaneously on the clock's rising edge, leading to precise and glitch-free counting. The reset input can asynchronously clear the counter, resetting all outputs to zero regardless of the clock state. Operating over a wide voltage range from 3V to 15V, the CD4516 is suitable for integration into both low-voltage and standard digital circuits. The IC's CMOS technology provides high noise immunity and low power consumption, enhancing the stability and efficiency of digital systems.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
- Reset and Preset capability
