CD40175 Quad D-Type FlipFlop IC (DIP-16 Package)

CD40175 Quad D-Type Flip Flop IC (DIP-16 Package)

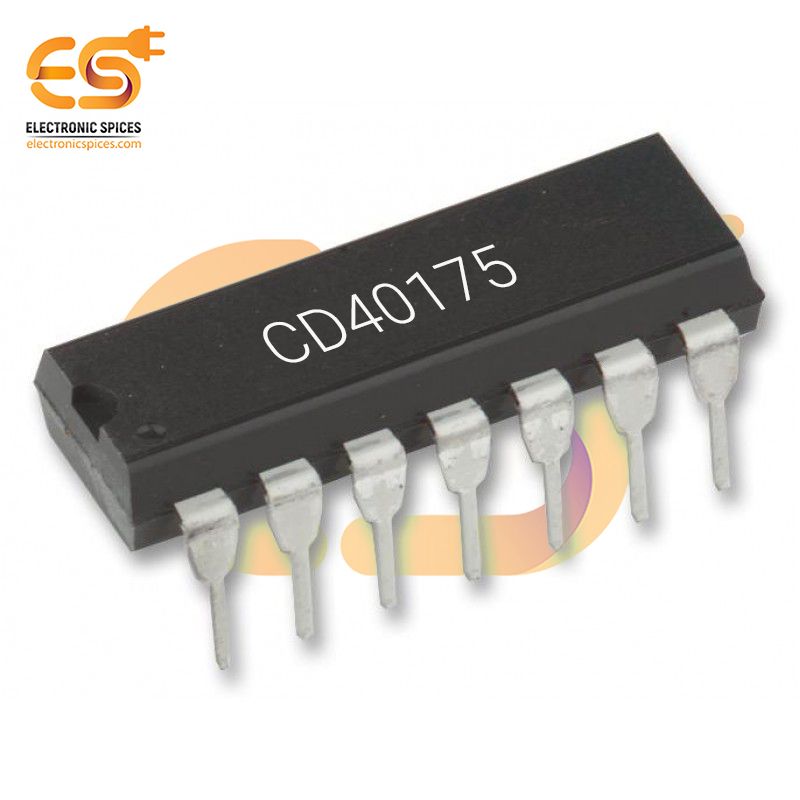

The CD40175 is a quad D-type flip-flop IC available in a DIP-16 package, commonly used for data storage and transfer applications in digital circuits. This IC contains four individual D-type flip-flops, each capable of storing one bit of data. It is ideal for implementing registers, data latches, and simple memory storage in both industrial and consumer electronics. Each flip-flop in the CD40175 features a data input (D), a clock input (CLK), and Q/Q' (true and complement) outputs. The IC operates by capturing the data present at the D input on the rising edge of the clock pulse and holding that data stable at the output until the next clock cycle. This edge-triggered design ensures reliable and synchronous data storage, critical for timing-sensitive digital applications. The CD40175 supports a wide range of operating voltages, from 3V to 15V, making it suitable for various low-power and mixed-voltage applications. The IC has high noise immunity, typical of CMOS devices, and low static power consumption, enhancing its reliability in noise-prone environments.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Quad D-Type Configuration
• Noise Margin (Over Full Package Temperature Range
• 100% Tested for Maximum Quiescent Current at 20V
