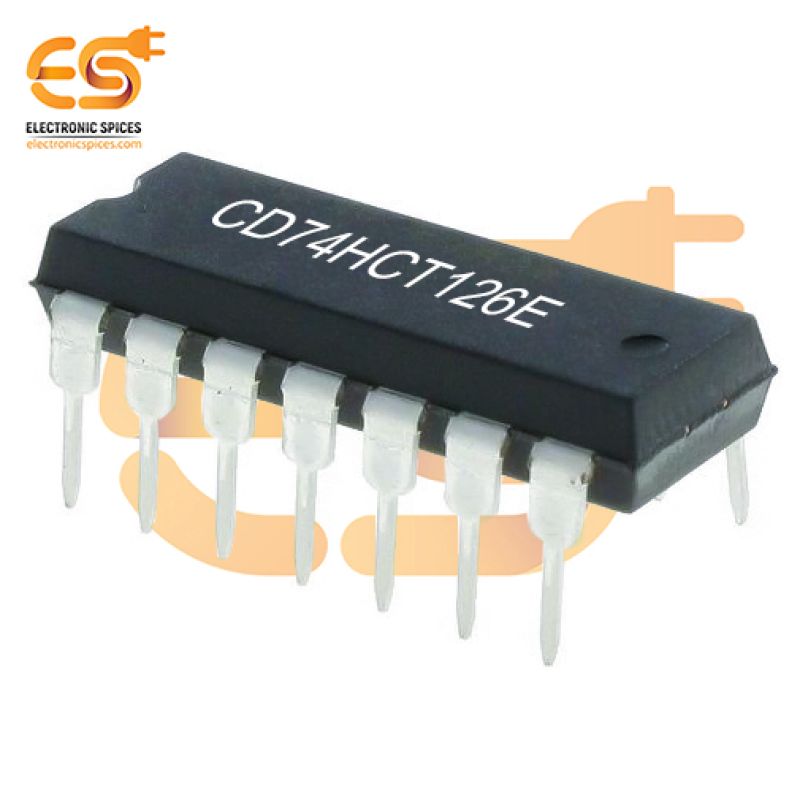

CD74HCT126E Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-PDIP

CD74HCT126E Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-PDIP

The CD74HCT126E is a high-speed, non-inverting buffer IC that features four independent 1-bit buffer elements, making it a compact solution for signal buffering in digital circuits. Each buffer has a 3-state output, allowing the device to actively drive signals or be placed in a high-impedance state when not in use. This feature is essential for bus systems where multiple devices may share common data lines without interference. The IC operates within a voltage range of 4.5V to 5.5V, which ensures compatibility with standard HCT (High-Speed CMOS with TTL compatibility) logic levels. It is housed in a 14-pin PDIP (Plastic Dual In-line Package), which is ideal for through-hole mounting and integration into standard PCB designs. As a member of the HCT family, the CD74HCT126E offers faster switching speeds and improved noise immunity compared to standard CMOS logic devices, making it ideal for high-speed digital signal applications. The IC's non-inverting nature ensures that input signals are passed to the output without inversion, making it suitable for use in signal routing, logic level shifting, and other applications requiring reliable signal transmission.

Features:-

• Non-inverting buffer with push-pull output
• Energy-efficient for use in low-power systems
• 4 independent 1-bit buffer elements (4 bits total)
• 3-state output for high-impedance operation
• 14-pin PDIP for through-hole mounting
