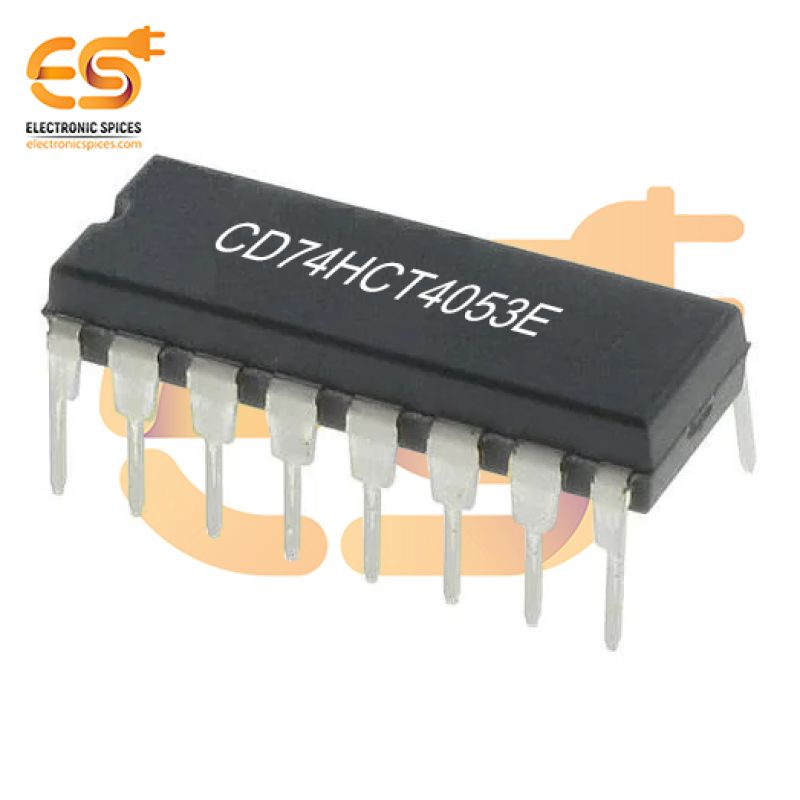

CD74HCT4053E 2:1 130 Ohm 3-Circuit Interface IC 16-PDIP

CD74HCT4053E 2:1 130 Ohm 3-Circuit Interface IC 16-PDIP

The CD74HCT4053E is a versatile 3-channel analog multiplexer IC designed for high-speed switching and signal routing in analog and digital circuits. Featuring a 2:1 multiplexer configuration, it allows for the selection of one of two input channels to be routed to a single output, making it ideal for applications that require the switching of analog signals or data. The IC operates in a 16-pin PDIP package, offering easy integration into standard PCB layouts. With an on-resistance of approximately 130 ohms, the CD74HCT4053E ensures minimal signal attenuation and high-quality performance for analog signal routing. The device is compatible with HCT logic families and operates within a wide voltage range of 4.5V to 5.5V, making it ideal for use in systems with 5V logic levels. This multiplexer is particularly useful in applications such as audio signal routing, analog-to-digital conversion, and sensor multiplexing. Its low power consumption, fast switching times, and reliability make it a valuable component in communication systems, consumer electronics, and industrial controls.

Features:-

• 2:1 analog multiplexer (two input channels, one output)
• Approximately 130 ohms for minimal signal loss
• Operates from 4.5V to 5.5V for compatibility with standard logic families
• Low capacitance and fast switching times for high-speed performance
