Specification:-
- Polarity: NPN
- Type Designator: D882
- Maximum Collector-Base Voltage |Vcb|: 40 V
- Maximum Collector-Emitter Voltage |Vce|: 30 V
- Maximum Emitter-Base Voltage |Veb|: 6 V
- Maximum Collector Current |Ic max|: 3 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 50 MHz
- Forward Current Transfer Ratio (hFE), MIN: 60
SKU: YB8541A1

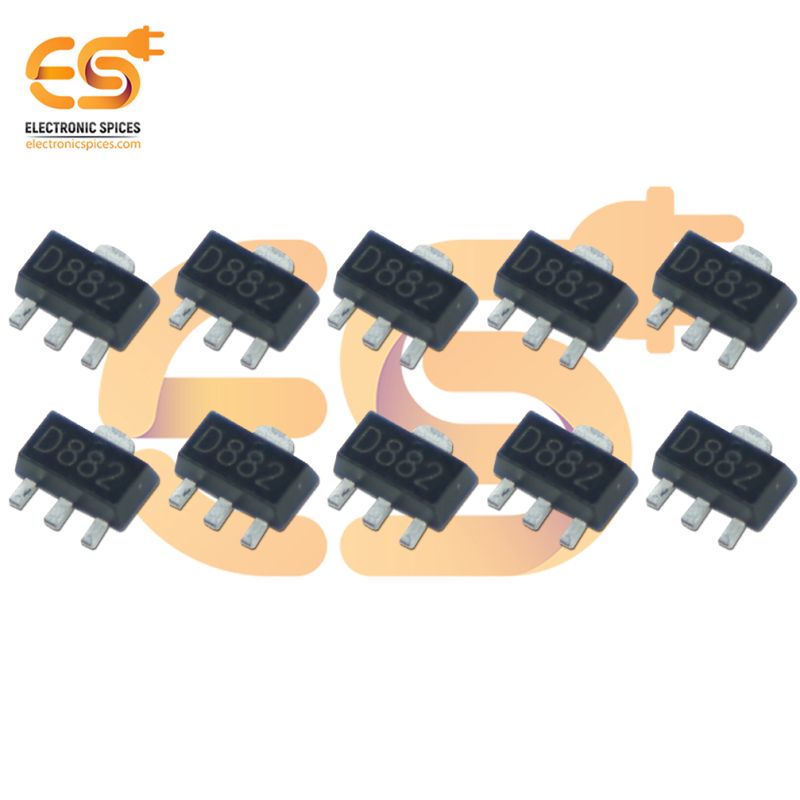

D882 NPN Transistor 30V (SOT-89 Package) Pack of 10
An NPN bipolar junction transistor (BJT) called the D882 is frequently used in electronic circuits for switching, amplification, and voltage control. This transistor, which comes in the SOT-89 surface-mount package, is small, simple to install, and has effective heat dissipation. Often used for switching or boosting electronic signals, the D882 is an NPN-type transistor, meaning it has three semiconductor layers (P-N-P). By applying a small current to the base terminal, NPN transistors permit current to move from the collector to the emitter. With a maximum collector-emitter voltage (VCEO) rating of 30V, the D882 transistor is appropriate for applications requiring low to moderate voltage. With this voltage rating, the transistor can withstand common voltages found in a variety of electronic circuits without running the risk of malfunctioning. Located within the SOT-89 surface-mount package, the D882 provides effective heat dissipation and a small form factor. The SOT-89 package is easy to integrate into surface-mount PCB layouts because it has three leads for the collector, base, and emitter connections. With comparatively low base currents, the D882 transistor can amplify small input signals due to its high current gain (hFE) characteristics. This feature can help applications that need to amplify signals, such as audio amplifiers, oscillator circuits, and sensor interfaces. The transistor has a low saturation voltage when it is fully turned on.
Applications:-
- Audio Amplifiers
- Switching Power Supplies
- Motor Drive Circuits
- LED Drivers
- Voltage Regulators
- Oscillator Circuits
- Sensor Interfaces
Features:-
- Compact Surface-Mount Package for Easy Installation
- Suitable for Low to moderate-voltage applications
- High Current Gain for Signal Amplification
- Low Saturation Voltage for Efficient Switching
- Wide Operating Temperature Range for Versatility
- Versatile Applications in Various Electronic Circuits
