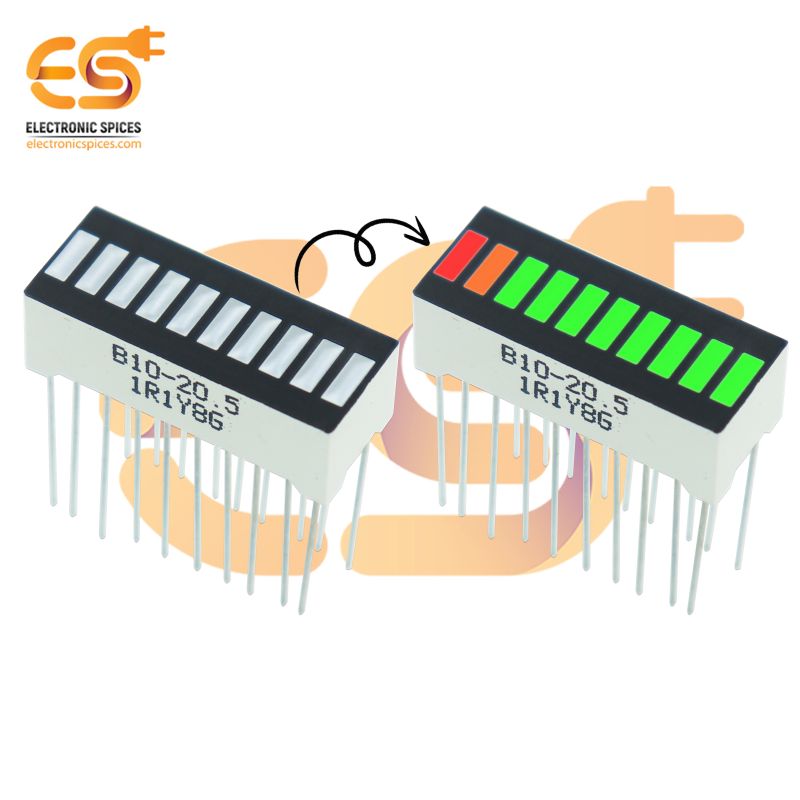

10 Segment LED Bar Graph Display 3 Color (Red + Orange + Green)
Specification:-
- Display Function: Graphics
- Forward Current (If): 25 mA
- Pixels: 25mm
- Digit height: 5mm
- Forward Voltage: Typical: 1.85 V
- Forward Voltage: Maximum: 2.2 V
- 10 Separately Controlled LEDs
- Dimension: 25mm x 10mm
SKU: OL8524A1
10 Segment LED Bar Graph Display 3 Color (Red + Orange + Green)
A 10-segment LED bar graph display with three colors (red, orange, and green) typically consists of 10 individual segments arranged in a bar graph format. Depending on the supplied input signals, each segment can be independently controlled to display a different color. Different levels or states are commonly indicated by the three colors red, orange, and green. By applying various voltage levels to the red, orange, and green components of each LED, the color of each segment can be adjusted. Typically, the display will have input pins for controlling the state or color of each segment. The display might use multiplexing to control multiple segments with a limited number of input pins.
Features:-
- High Brightness
- Economically priced
- Easy to Mount
- Anode/Cathode pins for each LED segment.
- Each segment in the bar graph is an individual LED.
- Audio equipment to display volume level
- These displays are commonly used in electronic devices to indicate levels or states.
